CC1150

SWRS037A

Page 21 of 60

command strobes are listed in Table 25 on

page 42.

Note that an SIDLE strobe will clear all

pending command strobes until IDLE state is

reached. This means that if for example an

SIDLE strobe is issued while the radio is in TX

state, any other command strobes issued

before the radio reaches IDLE state will be

ignored.

The command strobe registers are accessed

in the same way as for a register write

operation, but no data is transferred. That is,

only the R/W bit (set to 0), burst access (set to

0) and the six address bits (in the range 0x30

through 0x3D) are written.

When writing command strobes, the status

byte is sent on the SO pin.

A command strobe may be followed by any

other SPI access without pulling CSn high.

However, if an SRES command strobe is being

issued, on will have to wait for the SO pin to go

low before the next command strobe can be

issued as shown in Figure 10.The command

strobes are executed immediately, with the

exception of the SPWD and the SXOFF strobes

that are executed when CSn goes high.

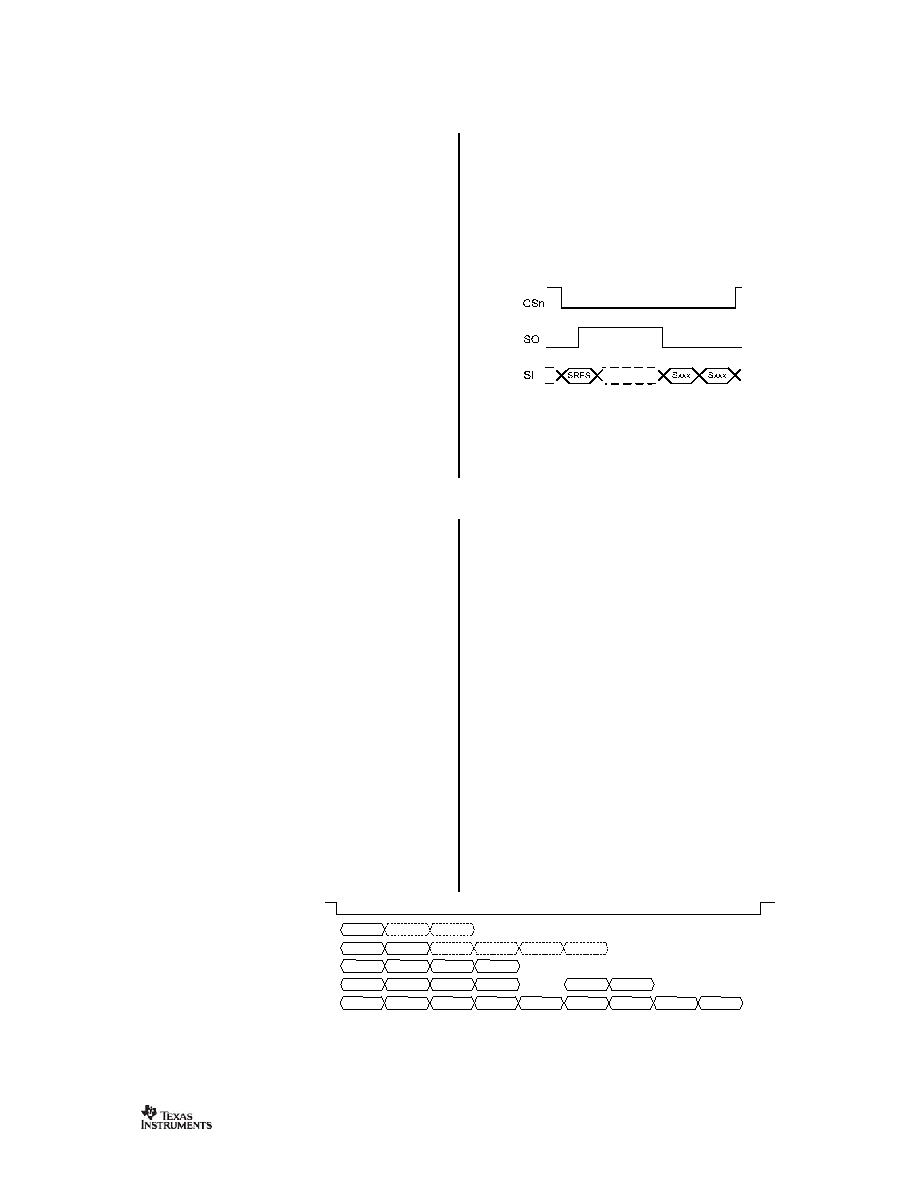

Figure 10: SRES Command Strobe

10.5

FIFO Access

The 64-byte TX FIFO is accessed through the

0x3F addresses. When the read/write bit is

zero, the TX FIFO is accessed. The TX FIFO

is write-only.

The burst bit is used to determine if FIFO

access is single byte or a burst access. The

single byte access method expects address

with burst bit set to zero and one data byte.

After the data byte a new address is expected;

hence, CSn can remain low. The burst access

method expects one address byte and then

consecutive data bytes until terminating the

access by setting CSn high.

The following header bytes access the FIFO:

•

0x3F: Single byte access to TX FIFO

•

0x7F: Burst access to TX FIFO

When writing to the TX FIFO, the status byte

(see Section 10.1) is output for each new data

byte on SO, as shown in Figure 10. This status

byte can be used to detect TX FIFO underflow

while writing data to the TX FIFO. Note that

the status byte contains the number of bytes

free before writing the byte in progress to the

TX FIFO. When the last byte that fits in the TX

FIFO is transmitted to the SI pin, the status

byte received concurrently on the SO pin will

indicate that one byte is free in the TX FIFO.

The TX FIFO may be flushed by issuing a

SFTX

command strobe. The SFTX command

strobe can only be issues in the IDLE or

TX_UNDERFLOW states. The FIFO is cleared

when going to the SLEEP state.

Figure 11 gives a brief overview of different

DATA

byte 0

ADDR

FIFO

DATA

byte 1 DATAbyte 2

DATA

byte n-1 DATAbyte n

...

ADDR

strobe

DATA

ADDR

strobe

ADDRreg

ADDRreg n

DATAn

DATAn+1

DATAn+2

...

ADDR

strobe

...

CSn:

Command strobe(s):

Read or write register(s):

Read or write consecutive registers (burst):

DATA

ADDRreg

DATA

ADDRreg

...

DATA

byte 0

ADDR

FIFO

DATA

byte 1

Combinations:

DATA

ADDR

reg

DATA

ADDR

reg

ADDR

strobe

ADDR

strobe

...

Read or write n+1 bytes from/to RF FIFO:

Figure 11: Register Access Types
