9.4
WLCSP8 (CS) package information
WLCSP8 is a 8 bumps, 1.289 x 1.955 mm, 0.5 mm pitch wafer level chip scale package

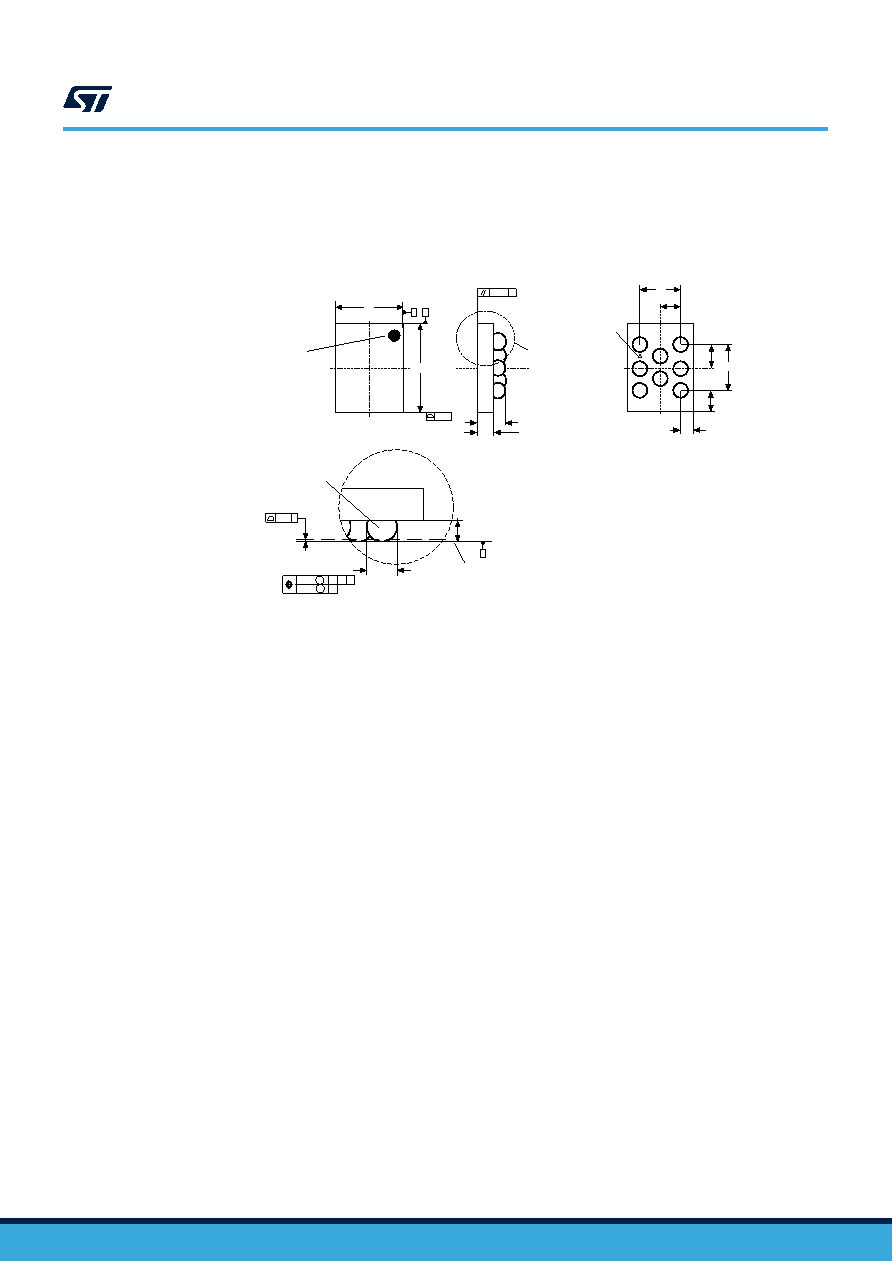

Figure 21. WLCSP8 - Outline
D
E
Wafer back side
Side view
Orientation
reference
e1
e3
e2
e
F
G
Bump side
X Y
aaa
Bump
Seating plane
Z
Detail A
rotated by 90°
A1
(8X)
Detail A
A2
A
Orientation
reference
Z
Z
X Y
(4X)
b
Z
bbb
Z
eee
ccc M
Ø
Ø
ddd M
1.
Drawing is not to scale
2.
Dimension is measured at the maximum bump diameter parallel to primary datum Z.
3.
Primary datum Z and seating plane are defined by the spherical crowns of the bump.
4.
Bump position designation per JESD 95-1, SPP-010.
M24512-W M24512-R M24512-DF
WLCSP8 (CS) package information
DS6520 - Rev 31
page 35/47
