Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage with Flexible Termination System (HV FT-CAP), C0G Dielectric, 500 – 10,000 VDC (Commercial Grade)

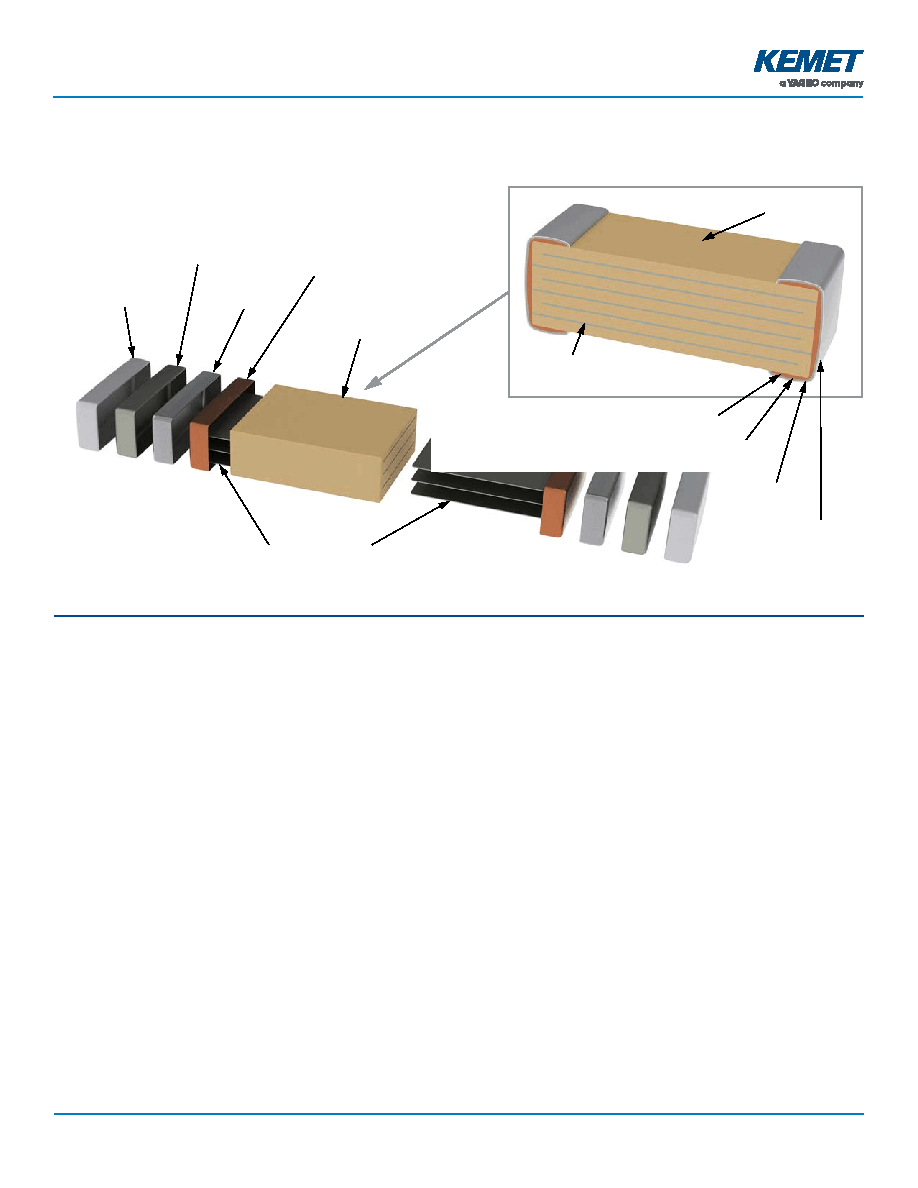

Construction

Detailed Cross Section

Barrier Layer

(Ni)

Epoxy Layer

(Ag)

End Termination/

External Electrode

(Cu)

Barrier Layer

(Ni)

Epoxy Layer

(Ag)

End Termination/

External Electrode

(Cu)

Inner Electrodes

(Ni)

Inner Electrodes

(Ni)

Termination Finish

(100% Matte

Sn/SnPb–5% Pb min)

Termination Finish

(100% Matte

Sn/SnPb–5% Pb min)

Dielectric Material

(CaZrO

3)

Dielectric Material

(CaZrO

3)

Capacitor Marking (Optional)

Laser marking option is not available on:

• C0G, Ultra Stable X8R and Y5V dielectric devices

• EIA 0402 case size devices

• EIA 0603 case size devices with Flexible Termination option.

• KPS Commercial and Automotive grade stacked devices.

These capacitors are supplied unmarked only.
