Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage with Flexible Termination System (HV FT-CAP), C0G Dielectric, 500VDC – 3000VDC (Commerical & Automotive Grade)

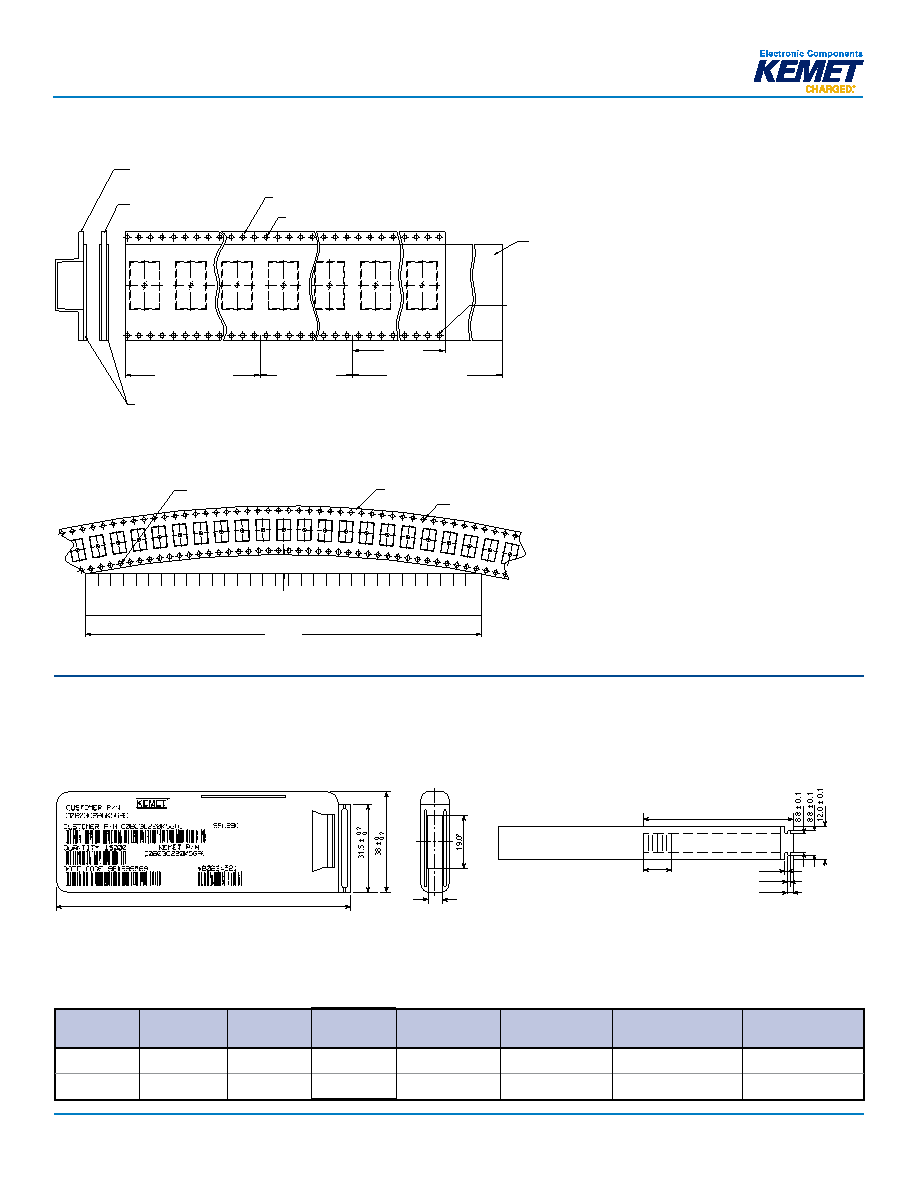

Figure 7 – Tape Leader & Trailer Dimensions

Trailer

160 mm Minimum

Carrier Tape

END

START

Round Sprocket Holes

Elongated Sprocket Holes

(32 mm tape and wider)

Top Cover Tape

Top Cover Tape

Punched Carrier

8 mm & 12 mm only

Embossed Carrier

Components

100 mm

Minimum Leader

400 mm Minimum

Figure 8 – Maximum Camber

Carrier Tape

Round Sprocket Holes

1 mm Maximum, either direction

Straight Edge

250 mm

Elongated sprocket holes

(32 mm & wider tapes)

Bulk Cassette Packaging (Ceramic Chips Only)

Meets Dimensional Requirements IEC–286 and EIAJ 7201

Unit mm *Reference

110 ± 0.7

5 0*

10*

53 3*

0

Capacitor Dimensions for Bulk Cassette

Cassette Packaging – Millimeters

EIA Size

Code

Metric Size

Code

L Length

W Width

B Bandwidth

S Separation

Minimum

T Thickness

Number of

Pieces/Cassette

0402

1005

1.0 ±0.05

0.5 ±0.05

0.2 to 0.4

0.3

0.5 ±0.05

50,000

0603

1608

1.6 ±0.07

0.8 ±0.07

0.2 to 0.5

0.7

0.8 ±0.07

15,000
