Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage with Flexible Termination System (HV FT-CAP), C0G Dielectric, 500VDC – 3000VDC (Commerical & Automotive Grade)

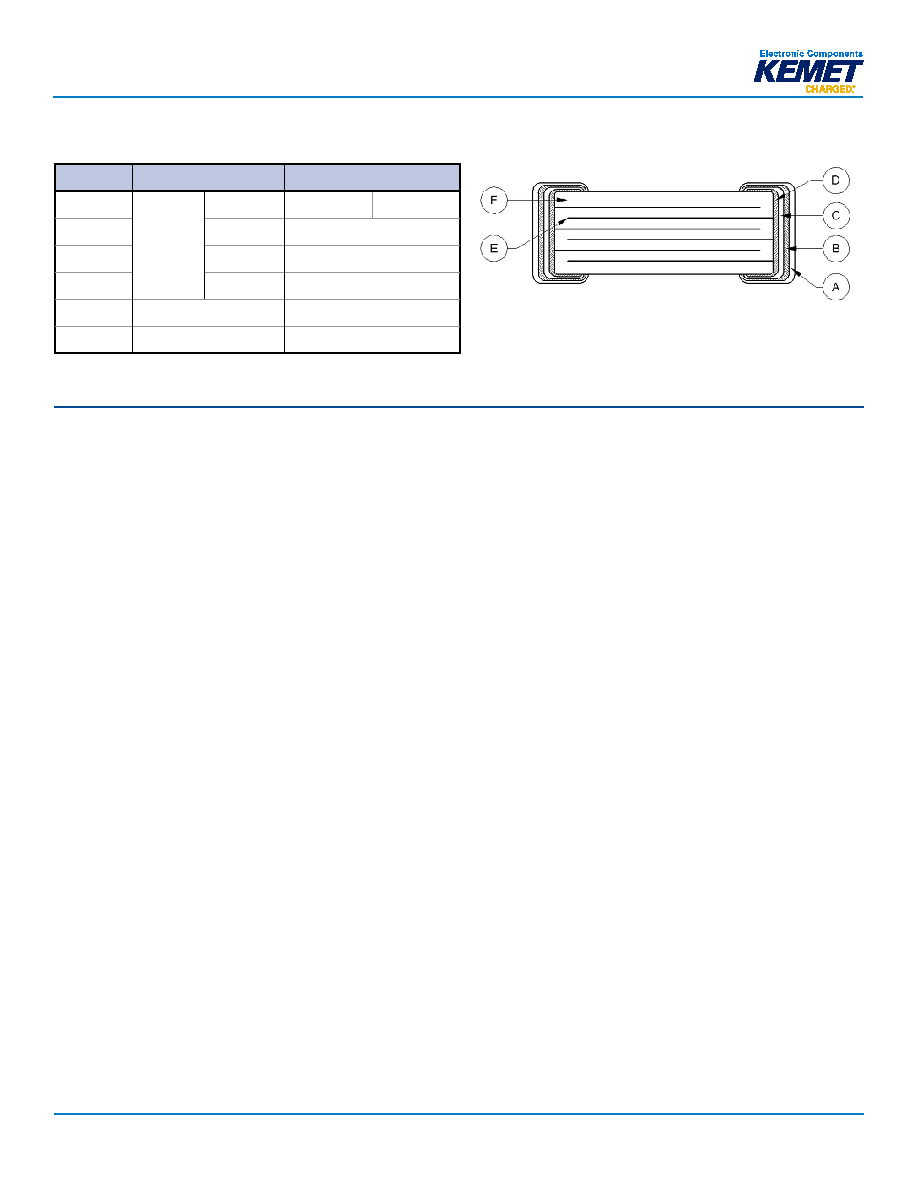

Construction

Reference

Item

Material

A

Termination

System

Finish

100% Matte Sn SnPb (5% min)

B

Barrier Layer

Ni

C

Epoxy Layer

Ag

D

Base Metal

Cu

E

Inner Electrode

Ni

F

Dielectric Material

CaZrO

3

Note: Image is exaggerated in order to clearly identify all components of construction.

Capacitor Marking (Optional):

Laser marking option is not available on:

• C0G, Ultra Stable X8R and Y5V dielectric devices

• EIA 0402 case size devices

• EIA 0603 case size devices with Flexible Termination option.

• KPS Commercial and Automotive grade stacked devices.

These capacitors are supplied unmarked only.
