FT121 ENHANCED USB DEVICE CONTROLLER WITH SPI SLAVE IC
Datasheet Version 1.2
Clearance No.: FTDI#
312
Symbol
Parameter
VCCIO=3.3V VCCIO=1.8V
Unit
Min
Max
Min
Max
t7
SS_n setup time to rising SCLK edge
2
2
ns
t8
SS_n hold time from falling sample SCLK edge
2
2
ns
Table 8.7
SPI slave timing
Note: All timing figures applied for both 4-wire and 3-wire modes.

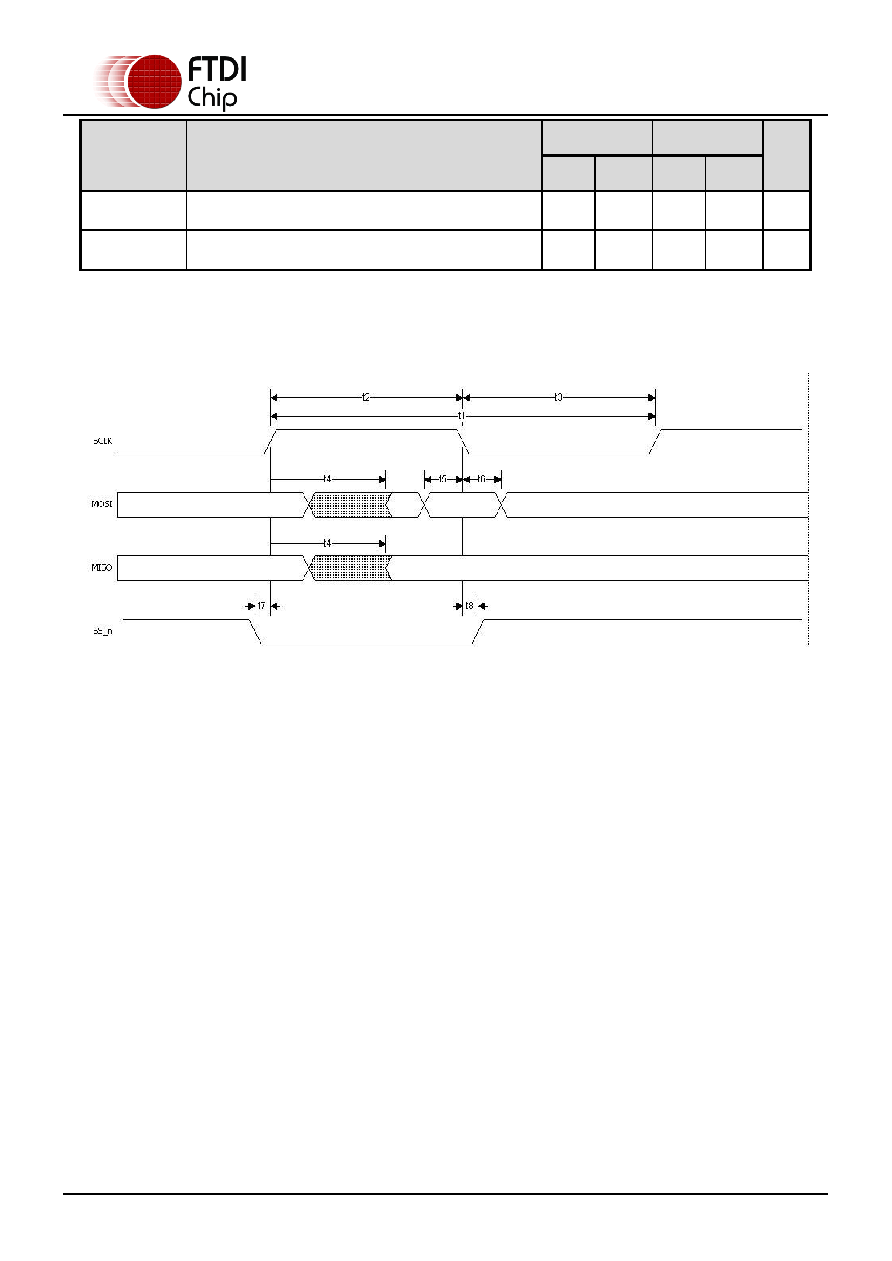

Figure 8-1 SPI slave timing
