Typical characteristics
LD1585C series
18/25

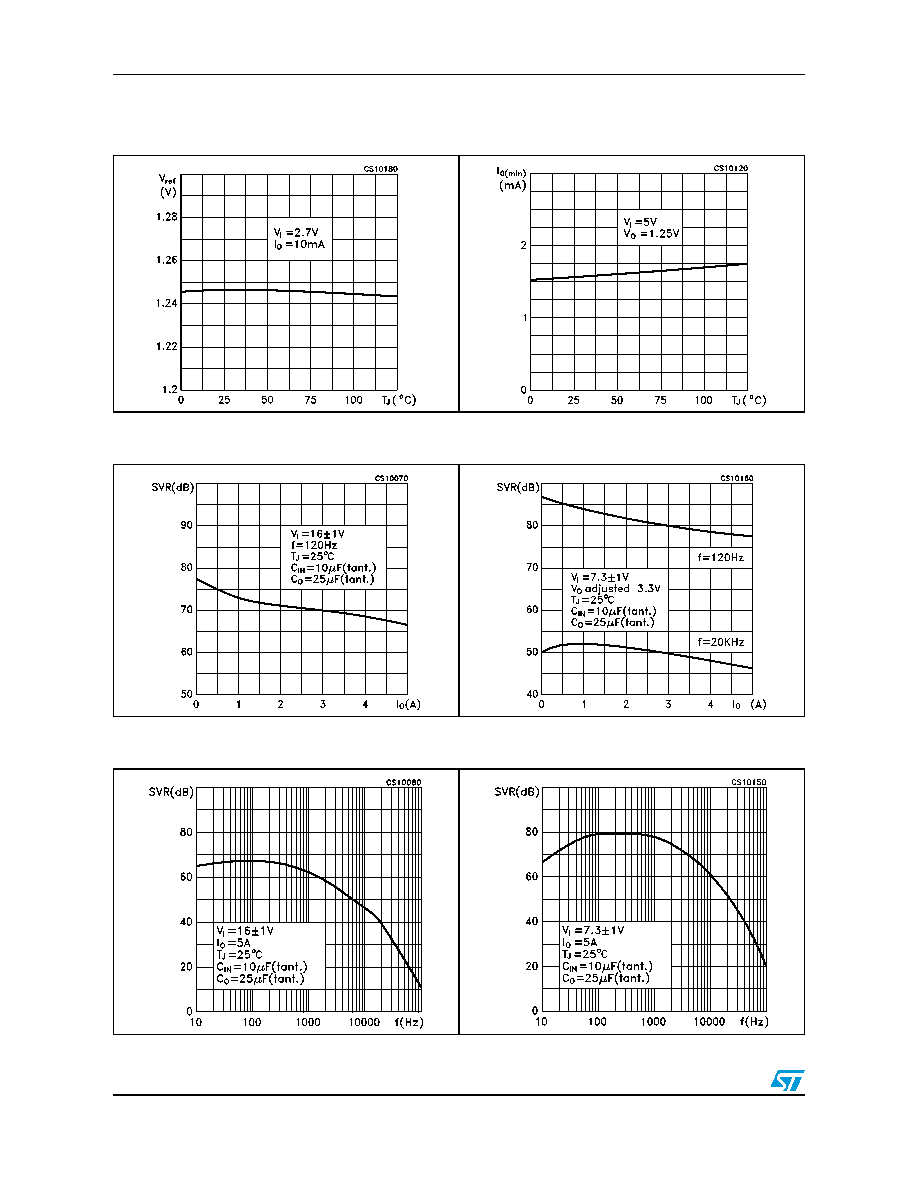

Figure 16.
Reference voltage vs temperature
Figure 17.
Minimum load current vs
temperature
Figure 18.
Supply voltage rejection vs output
current
Figure 19.
Supply voltage rejection vs output
current
Figure 20.
Supply voltage rejection vs
frequency
Figure 21.
Supply voltage rejection vs
frequency
