LD1585C series
Typical characteristics
17/25

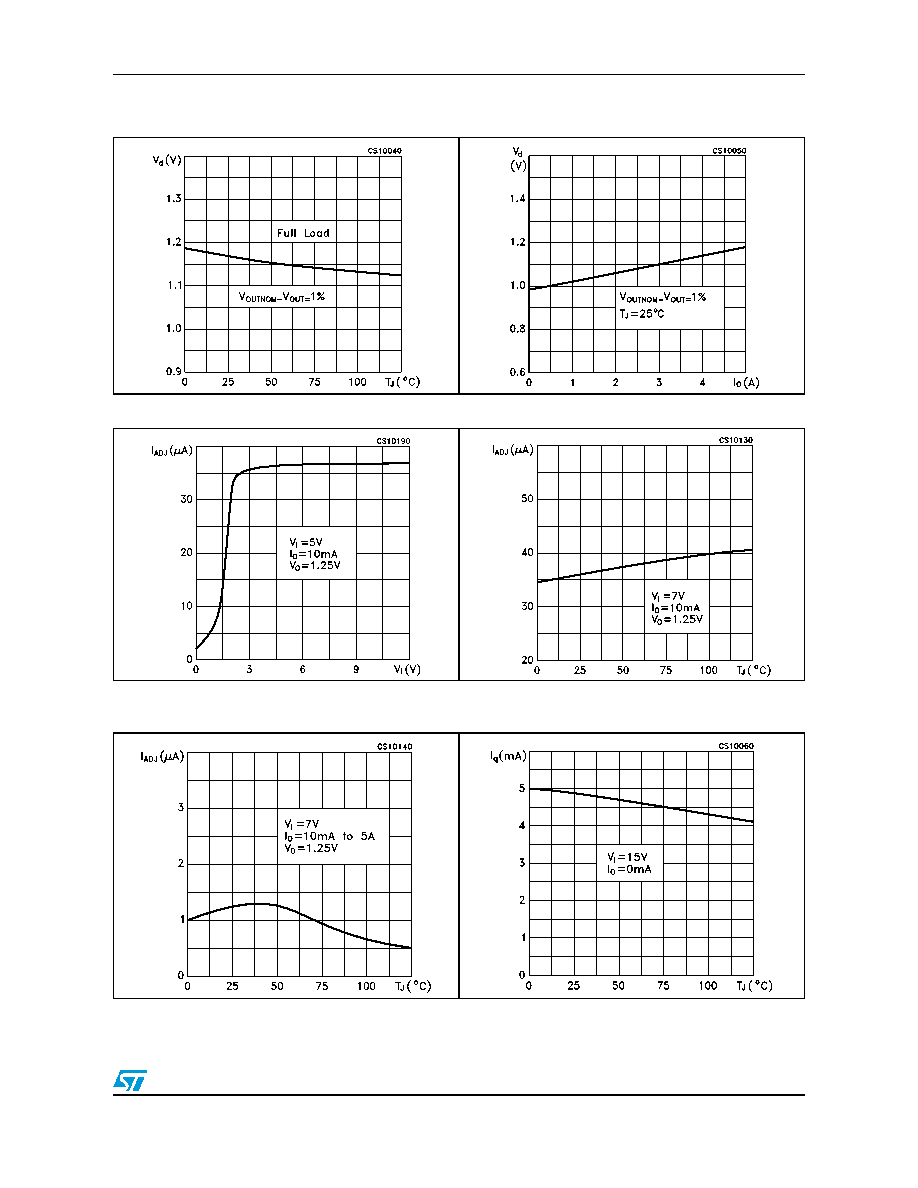

Figure 10.
Dropout voltage vs temperature
Figure 11.
Dropout voltage vs output current
Figure 12.
Adjust pin current vs input voltage Figure 13.
Adjust pin current vs temperature
Figure 14.
Adjust pin current change vs
temperature
Figure 15.
Quiescent current vs temperature
