LD1585CD2M-R Datasheet(PDF) 16 Page - STMicroelectronics

Part # LD1585CD2M-R
Description  5A Low dropout fast response positive voltage regulator adjustable and fixed
PDF  25 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

LD1585CD2M-R Datasheet(HTML) 16 Page - STMicroelectronics

Back Button LD1585CD2M-R Datasheet HTML 12Page - STMicroelectronics LD1585CD2M-R Datasheet HTML 13Page - STMicroelectronics LD1585CD2M-R Datasheet HTML 14Page - STMicroelectronics LD1585CD2M-R Datasheet HTML 15Page - STMicroelectronics LD1585CD2M-R Datasheet HTML 16Page - STMicroelectronics LD1585CD2M-R Datasheet HTML 17Page - STMicroelectronics LD1585CD2M-R Datasheet HTML 18Page - STMicroelectronics LD1585CD2M-R Datasheet HTML 19Page - STMicroelectronics LD1585CD2M-R Datasheet HTML 20Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 16 / 25 page
background image

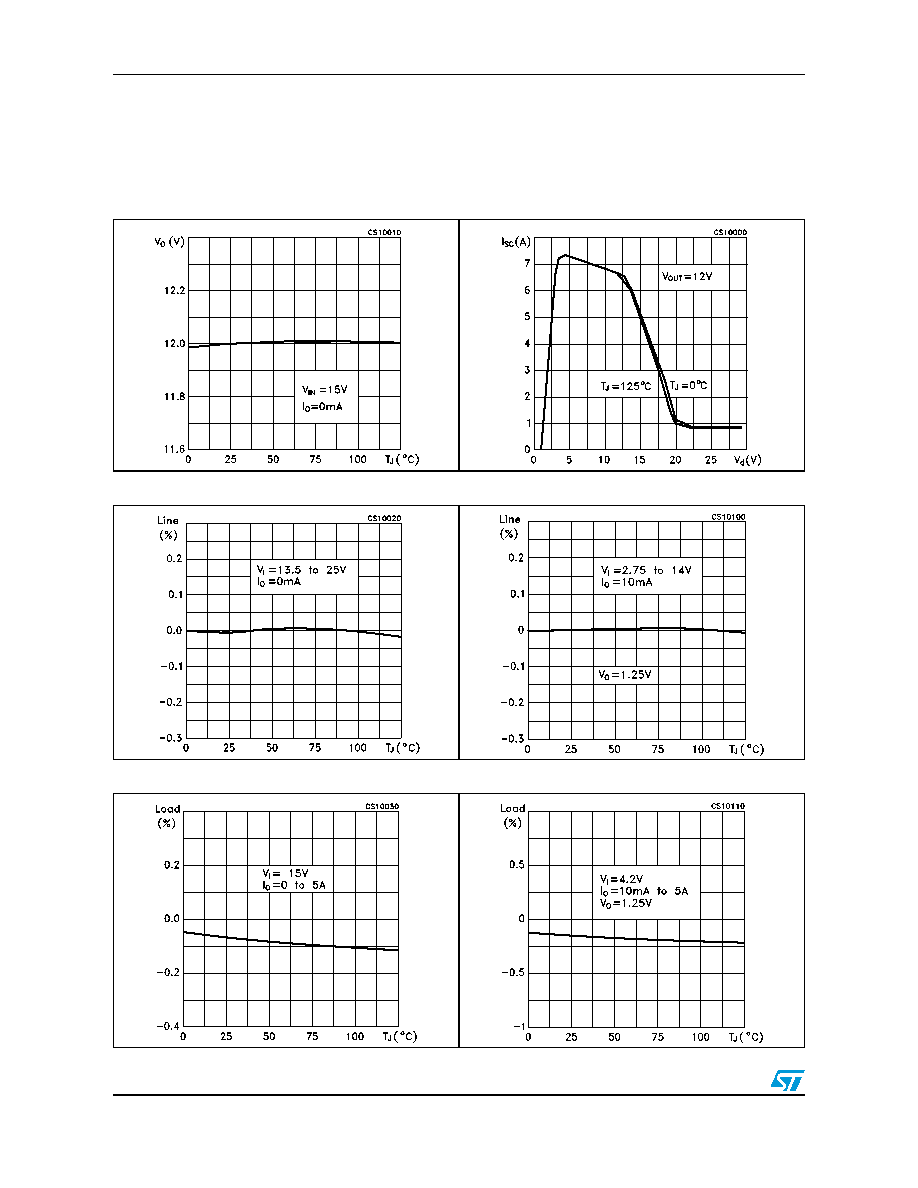

Typical characteristics
LD1585C series
16/25
6
Typical characteristics
(unless otherwise specified TJ=25°C, CI=CO=10µF tant.)
Figure 4.
Output voltage vs temperature
Figure 5.
Short circuit current vs dropout
voltage
Figure 6.
Line regulation vs temperature
Figure 7.
Line regulation vs temperature
Figure 8.
Load regulation vs temperature
Figure 9.
Load regulation vs temperature
