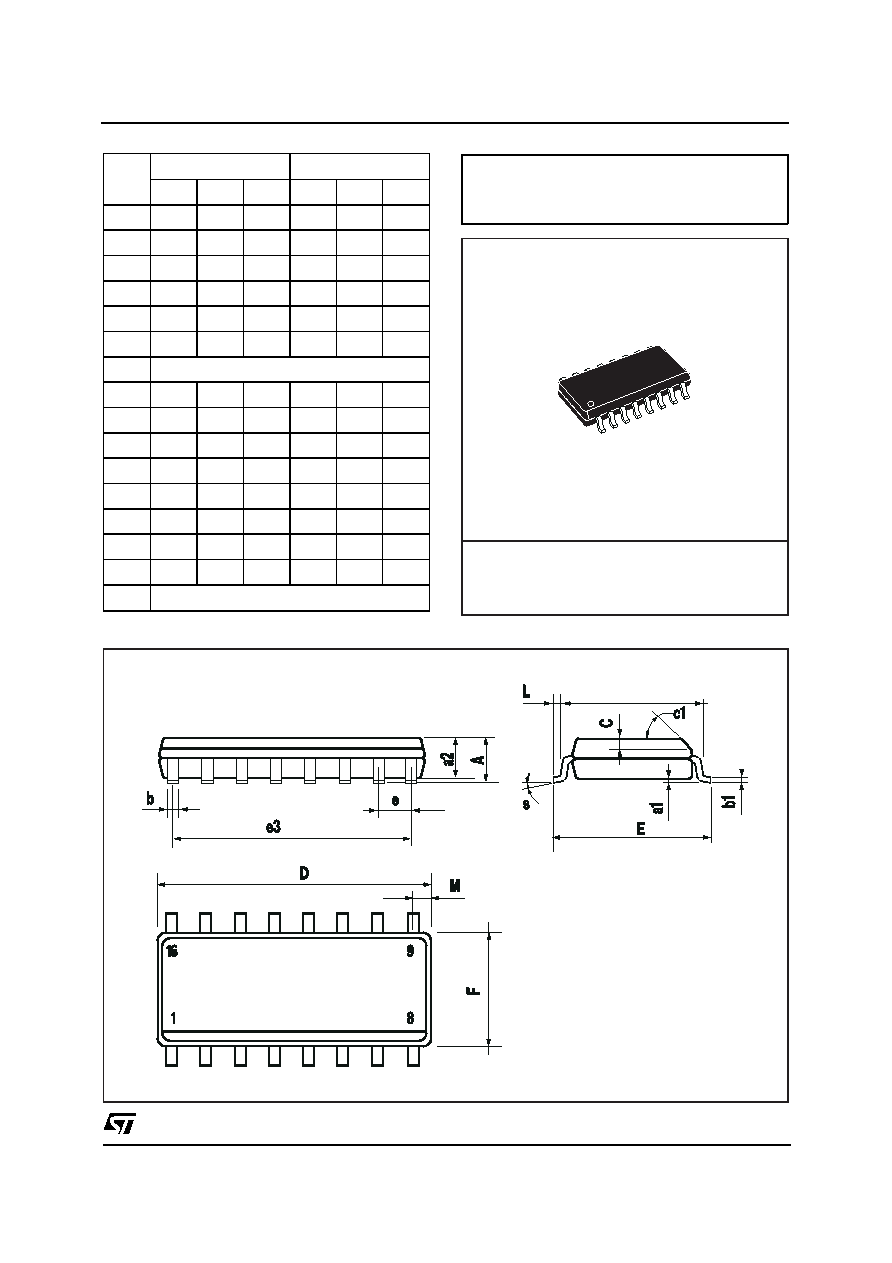

SO16 Narrow

DIM.

mm

inch

MIN.

TYP.

MAX.

MIN.

TYP.

MAX.

A

1.75

0.069

a1

0.1

0.25

0.004

0.009

a2

1.6

0.063

b

0.35

0.46

0.014

0.018

b1

0.19

0.25

0.007

0.010

C

0.5

0.020

c1

45˚ (typ.)

D (1)

9.8

10

0.386

0.394

E

5.8

6.2

0.228

0.244

e

1.27

0.050

e3

8.89

0.350

F (1)

3.8

4

0.150

0.157

G

4.6

5.3

0.181

0.209

L

0.4

1.27

0.016

0.050

M

0.62

0.024

S

(1) D and F do not include mold flash or protrusions. Mold flash or potrusions shall not exceed 0.15mm (.006inch).

OUTLINE AND

MECHANICAL DATA

8˚(max.)

ULQ2001A - ULQ2002A - ULQ2003A - ULQ2004A
