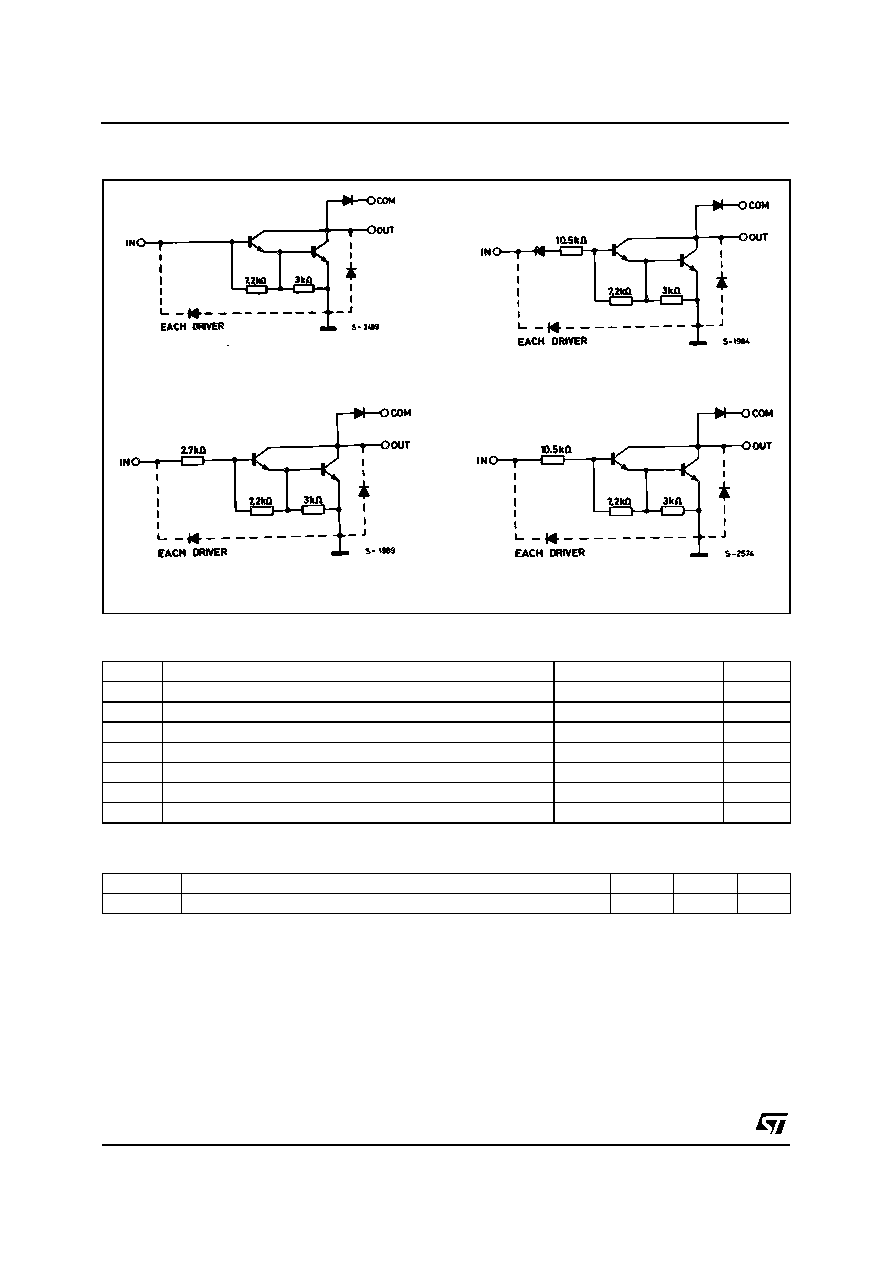

SCHEMATIC DIAGRAM

Series ULQ-2001A

(each driver)

Series ULQ-2002A

(each driver)

Series ULQ-2003A

(each driver)

Series ULQ-2004A

(each driver)

ABSOLUTE MAXIMUM RATINGS

Symbol

Parameter

Value

Unit

Output Voltage

50

V

Input Voltage (for ULQ2002A/D1 - 2003A/D1 - 2004A/D1)

30

V

Continuous Colletor Current

500

mA

Continuous Base Current

25

mA

Tamb

Operating Ambient Temperature Range

–40 to 105

°C

Storage Temperature Range

–55 to 150

°C

Junction Temperature

150

°C

THERMAL DATA

Symbol

Parameter

DIP16

SO16

Unit

Thermal Resistance Junction-ambient

Max.

70

120

°C/W

ULQ2001A - ULQ2002A - ULQ2003A - ULQ2004A

2/7
