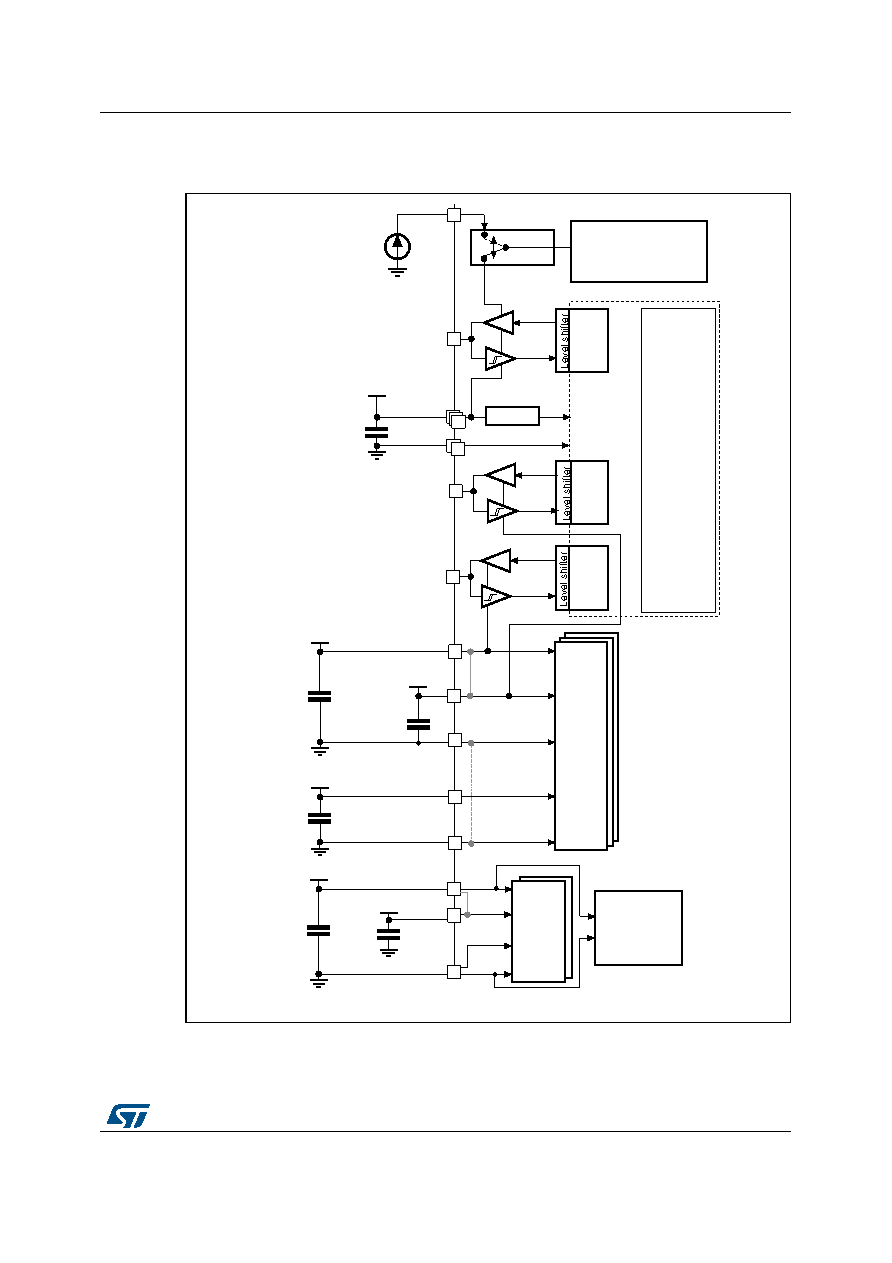

53 / 131 page  DocID022691 Rev 4 53/131 STM32F37xxx Electrical characteristics 114 6.1.6 Power supply scheme Figure 9. Power supply scheme 1. Dotted lines represent the internal connections on low pin count packages, joining the dedicated supply pins. MS19232V3 Analog: RCs, PLL, COMP, ... Po wer swi tch VBAT GP I/O s OUT IN Kernel logic (CPU, Digital & Memories) Backup circuitry (LSE,RTC, Backup registers) Wakeup logic 2 × 100 nF + 1 × 4.7 μF 1.65 - 3.6 V Regulator VDDA VSSA ADC/ DAC IO Logic VDD 10 nF + 1 μF VDDA VREF+ VREF- VDD VSS 3 × 2 × Sigma Delta ADCs 10 nF + 1 μF VDDSD12 VDDSD12 VDDSD3 VDDSD3 VSSSD 10 nF + 1 μF VREFSD+ VREFSD- 10 nF + 1 μF VREFSD+ GP I/O s OUT IN IO Logic GP I/O s OUT IN IO Logic 10 nF + 1 μF VREF REF+ V 1.8 V @VDD @VDDSD3 @VDDSD12 |
|
