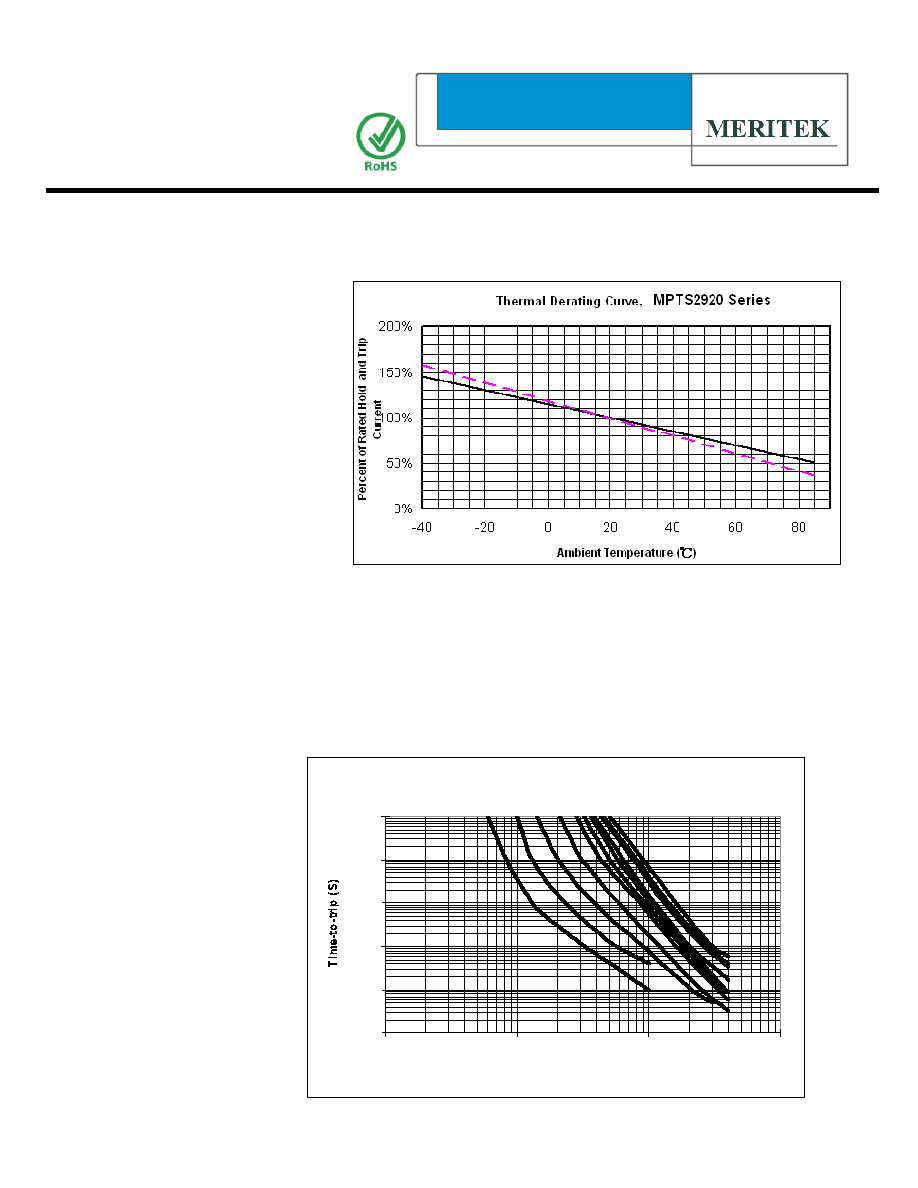

Thermal Derating Curve
Typical Time-To-Trip at 23ºC
Polymeric PTC
MPTS Series
A = MPTS2920L030R
B = MPTS2920L050R
C = MPTS2920L075R
D = MPTS2920L100R
E = MPTS2920L125R
F = MPTS2920L150R
G = MPTS2920L185R
H = MPTS2920L200R
I = MPTS2920L250R
J = MPTS2920L260R
K= MPTS2920L300R
A
B C
D EFGHIJK
0.001
0.01
0.1
1
10
100
0.1
1
10
100
Fault current (A)
---- MPTS2920L030R
MPTS2920L050R
MPTS2920L075R
MPTS2920L100R
──
MPTS2920L125R
MPTS2920L150R
MPTS2920L185R
MPTS2920L200R
MPTS2920L250R
MPTS2920L260R
MPTS2920L300R
Rev.7
