AM261...ZFG Datasheet(PDF) 172 Page - Texas Instruments |
|
|
|||||||||||||||||||||||||||||
AM261...ZFG Datasheet(HTML) 172 Page - Texas Instruments |
|
|

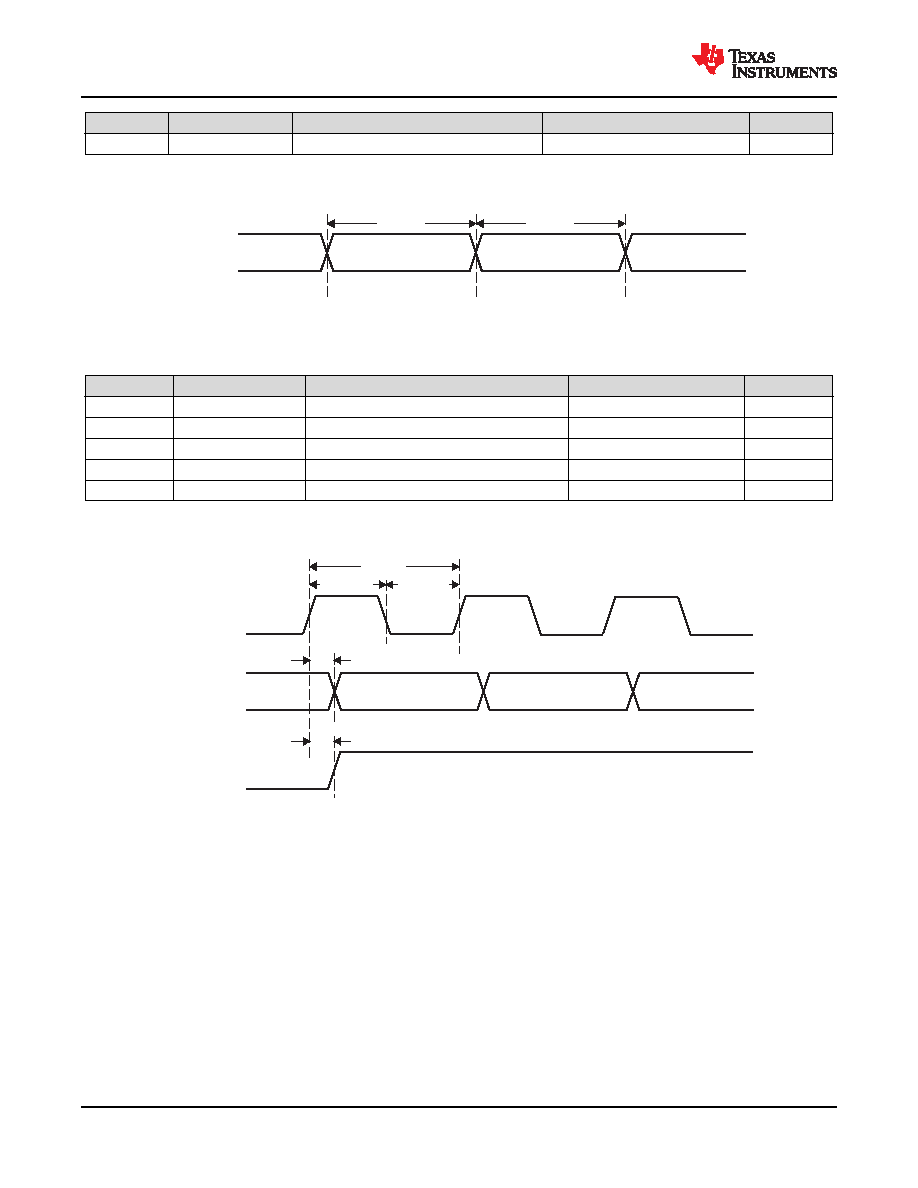

172 / 218 page  NO. PARAMETER DESCRIPTION MIN MAX UNIT PRPIF2 tw(PIF_DATA_INL) Pulse duration, PIF_DATA_IN Low 2 + 0.475 × (4 × P(1)) ns (1) P = 1x (or TX) clock period, defined by TX_DIV_FACTOR and TX_DIV_FACTOR_FRAC in the CFG_ED_P<n>_TXCFG register. PIF_DATA_IN PRPIF1 PRUPIF_TIMING_01 PRPIF2 Figure 6-72. PRU-ICSS PRU Peripheral Interface Timing Requirements 6.11.5.14.2.4 PRU-ICSS PRU Switching Characteristics - Peripheral Interface Mode NO. PARAMETER DESCRIPTION MIN MAX UNIT PRPIF3 tc(PIF_CLK) Cycle time, PIF_CLK 30 ns PRPIF4 tw(PIF_CLKH) Pulse duration, PIF_CLK High 0.475P(1) ns PRPIF5 tw(PIF_CLKL) Pulse duration, PIF_CLK Low 0.475P(1) ns PRPIF6 td(PIF_CLK-PIF_DATA_OUT) Delay time, PIF_CLK fall to PIF_DATA_OUT –5 5 ns PRPIF7 td(PIF_CLK-PIF_DATA_EN) Delay time, PIF_CLK fall to PIF_DATA_EN –5 5 ns (1) P = 1x (or TX) clock period, defined by TX_DIV_FACTOR and TX_DIV_FACTOR_FRAC in the CFG_ED_P<n>_TXCFG register. PIF_CLK PIF_DATA_OUT PRPIF3 PRPIF4 PRPIF6 PRPIF5 PIF_DATA_EN PRPIF7 Figure 6-73. PRU-ICSS PRU Peripheral Interface Switching Characteristics AM2612, AM2611, AM2611-Q1, AM2612-Q1 SPRSPA7C – SEPTEMBER 2024 – REVISED JULY 2025 www.ti.com 172 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated Product Folder Links: AM2612 AM2611 AM2611-Q1 AM2612-Q1 |
|
