SPI_CS[i] (OUT)
SPI_SCLK (OUT)
SPI_SCLK (OUT)
SPI_D[x] (IN)
SPI_CS[i] (OUT)
SPI_SCLK (OUT)
SPI_SCLK (OUT)
SPI_D[x] (IN)
Bit n-1
Bit n-2
Bit n-3
Bit n-4
Bit 0
Bit n-1
Bit n-2
Bit n-3
Bit 1
Bit 0
PHA=0
EPOL=1
PHA=1
EPOL=1
POL=0
POL=1
POL=0
POL=1
SM8
SM9
SM3
SM1
SM2
SM1
SM8
SM9
SM3
SM1
SM2
SM1
SM2
SM3
SM2
SM3
SM4
SM5
SM4
SM5
SM4
SM4
SM5
SM5
SPRSP08_TIMING_McSPI_02

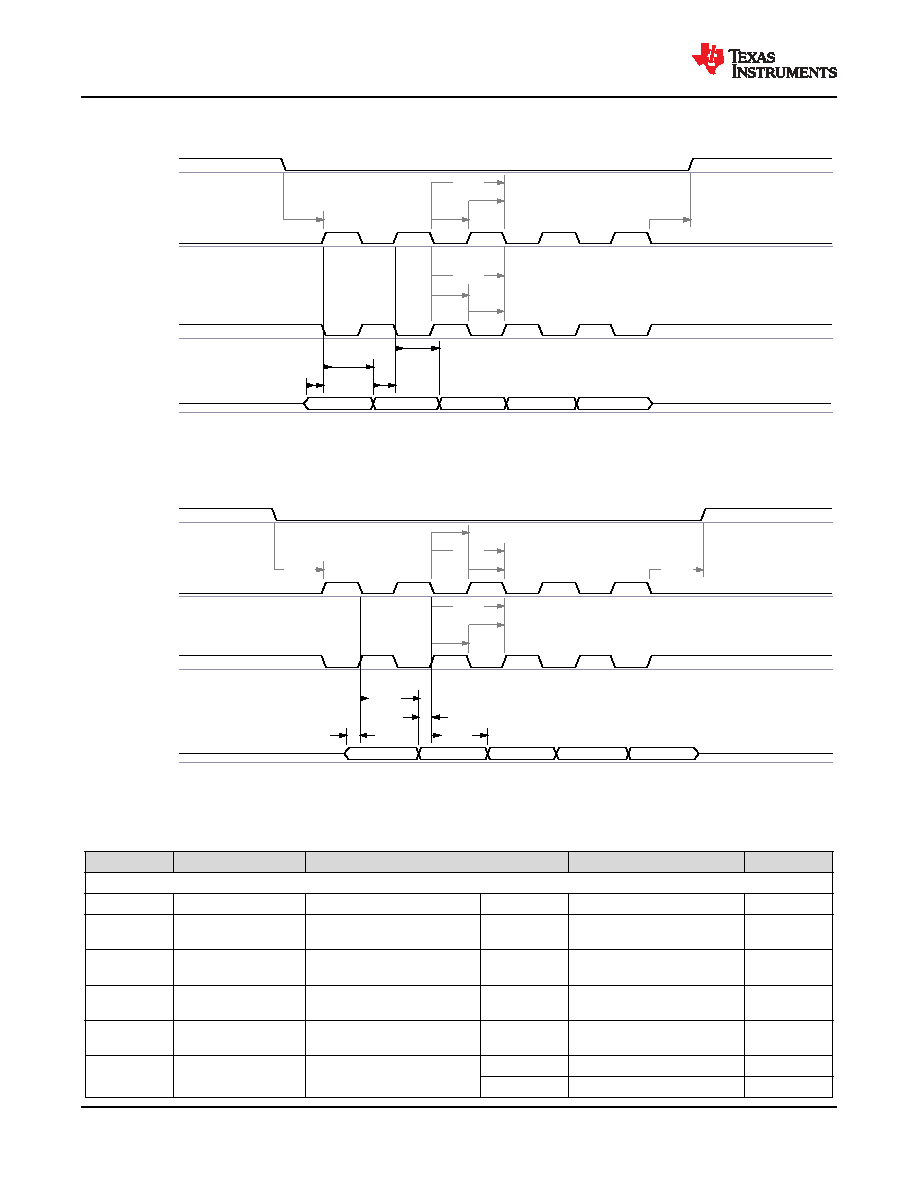

Figure 6-41. SPI Controller Mode Receive Timing
6.11.5.11.3 SPI Controller Mode Switching Characteristics (Clock Phase = 0)
NO.
PARAMETER
DESCRIPTION
MIN
MAX
UNIT
Normal Mode
SM1
tc(SPICLK)
Cycle time, SPI_SCLK
20
ns
SM2
tw(SPICLKL)
Typical Pulse duration,
SPI_SCLK low
–1 + 0.5P(1)
ns
SM3
tw(SPICLKH)
Typical Pulse duration,
SPI_SCLK high
–1 + 0.5P(1)
ns
SM6
td(SPICLK-SIMO)
Delay time, SPI_SCLK active
edge to SPI_D[x] transition
–3
2
ns
SM7
tsk(CS-SIMO)
Delay time, SPI_CS[i] active to
SPI_D[x] transition
5
ns
SM8
td(SPICLK-CS)
Delay time, SPI_CS[i] active to
SPI_SCLK first edge
PHA = 0
–4 + B(3)
ns
PHA = 1
–4 + A(2)
ns
AM2612, AM2611, AM2611-Q1, AM2612-Q1
SPRSPA7C – SEPTEMBER 2024 – REVISED JULY 2025
www.ti.com
148
Submit Document Feedback
Copyright © 2025 Texas Instruments Incorporated
Product Folder Links: AM2612 AM2611 AM2611-Q1 AM2612-Q1
