APPLICATIONS INFORMATION

It is application circuit of UTC L8401 in figure 2, the bias circuits is stable fully in -40°C ~80°C.

other external circuits, but it is low load current is noticeable.

C1 and C2 are used to suppress noise or RF interference in each stage of the IC or other external circuits in

application circiut system. Value of C1 and C2 could be used in 1nF to 100nF as design dependent.

half normal value.

There are full protection for external FETs on chip: The gate output voltage is limitted in -2.5V~0.7V in any

conditions including powerup and powerdown transients; If the negative bias generator be shorted or overloaded, the

drain supply to FETs is shut down to avoid damage to the FETs by excessive drain current.

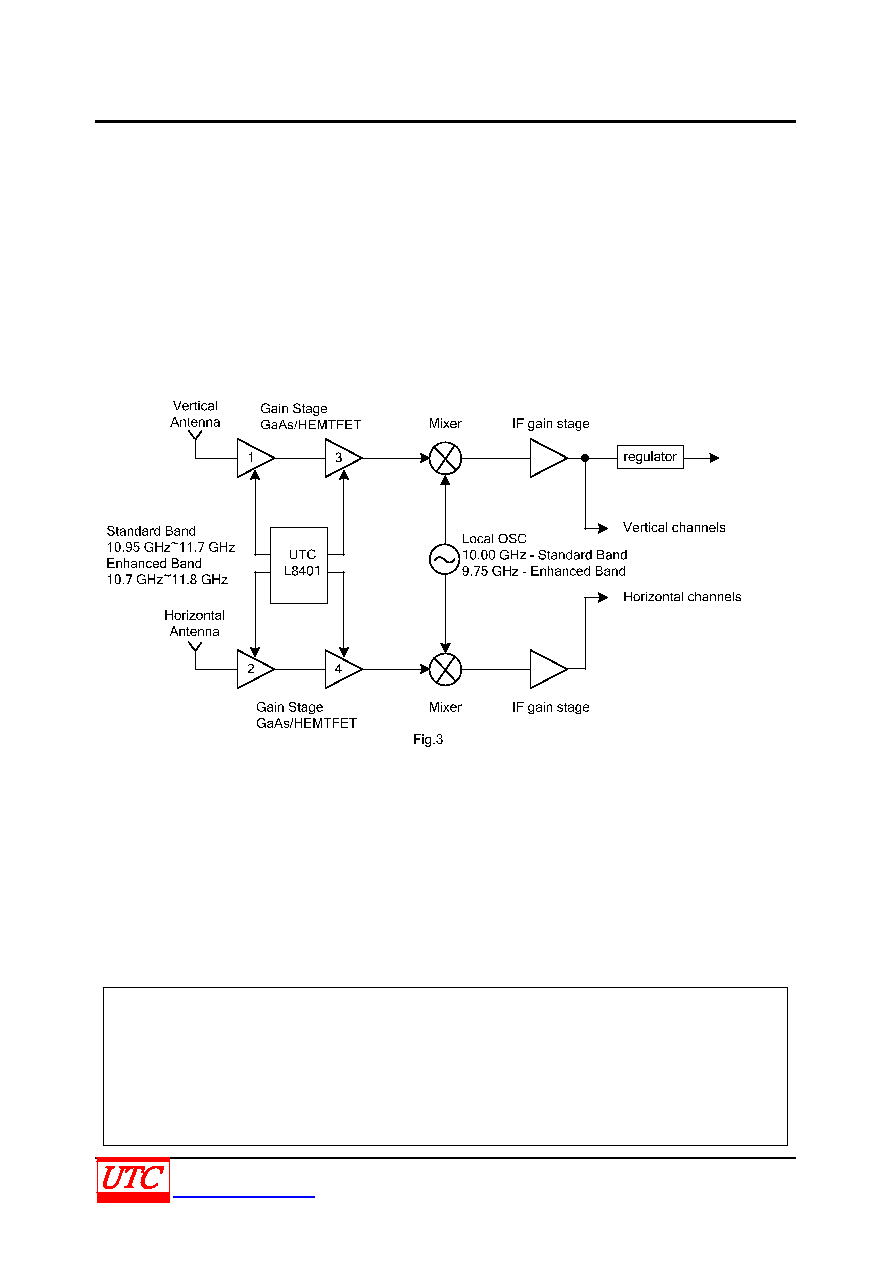

The fig.3 is typical applications of UTC L8401 in LNB.
