www.asb.co.kr

June 2010

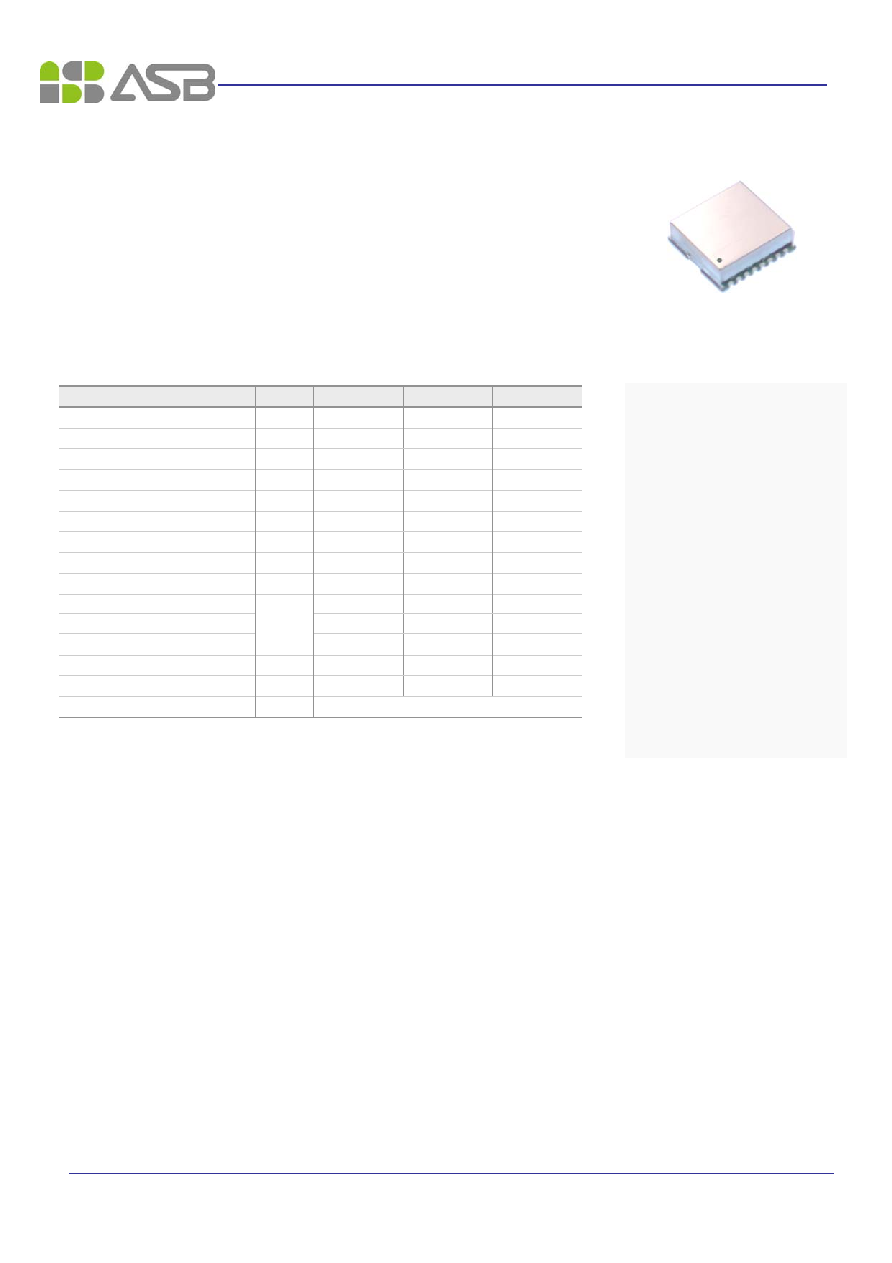

plerow

TM APL1568-R

PLL Synthesizer Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

1568

Output Power

dBm

3

5

7

Supply Voltage

V

5

Current Consumption

mA

28

40

2

nd Harmonics

dBc

-25.0

-20.0

Spurious Level

dBc

-70

-65

Reference Frequency

MHz

10

Reference Input Level

dBm

5

Phase Noise (C / N)

0

2

5

@ 1 kHz

-75

-70

@ 10 kHz

-102

-97

@ 100 kHz

dBc/Hz

-119

-115

Output Impedance



50

Operating Temp. Range

C

-30

25

80

Package Type & Size

mm

SMT, 19.0W

19.0L5.8H

1) Measurement conditions are as follows: T = 25

C, V

CC = 5 V, Freq. = 1568MHz, 50 ohm system.

Features

Specifications

· 5 dBm Output Level at 1568 MHz

· 2

nd Harmonic: < -20 dBc

· Spurious Level: < -65 dBc

· Current Consumption: < 40 mA

Description

The plerow

TM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

More Information

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7220

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejeon 302-716, Ko-

rea
