680
HCTS393MS
Die Characteristics
DIE DIMENSIONS:
86 x 86 mils
METALLIZATION:
Type: AlSi
Metal Thickness: 11k
Å
± 1kÅ
GLASSIVATION:
Type: SiO2
Thickness: 13k
Å
± 2.6kÅ
WORST CASE CURRENT DENSITY:
<2.0 x 105A/cm2
BOND PAD SIZE:
100
µm x 100µm
4 mils x 4 mils

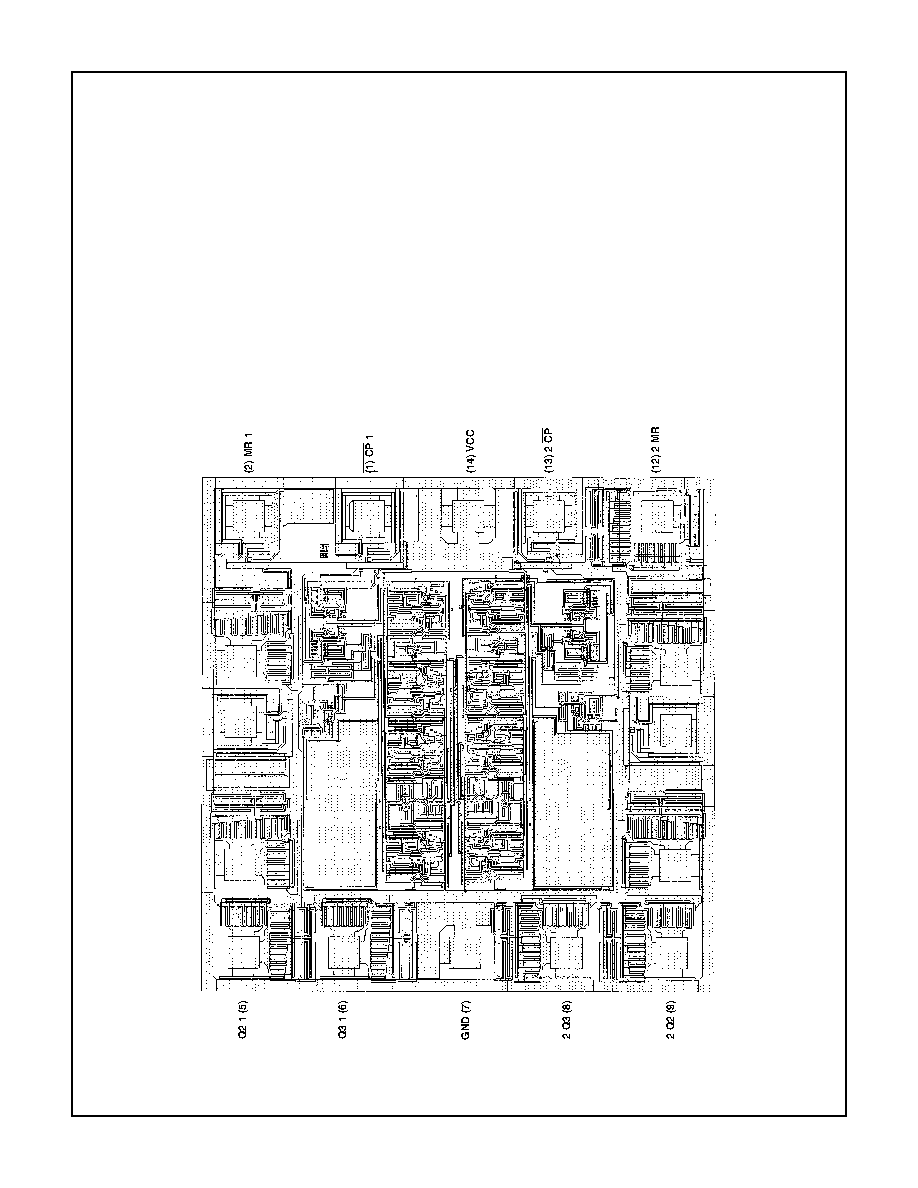

Metallization Mask Layout
HCTS393MS
NOTE: The die diagram is a generic plot from a similar HCS device. It is intended to indicate approximate die size and bond pad location.
The mask series for the HCTS393 is TA14490A.
Q0 1 (3)
Q1 1 (4)
(11) 2 Q0
(10) 2 Q1
NC
NC
Spec Number
518633
