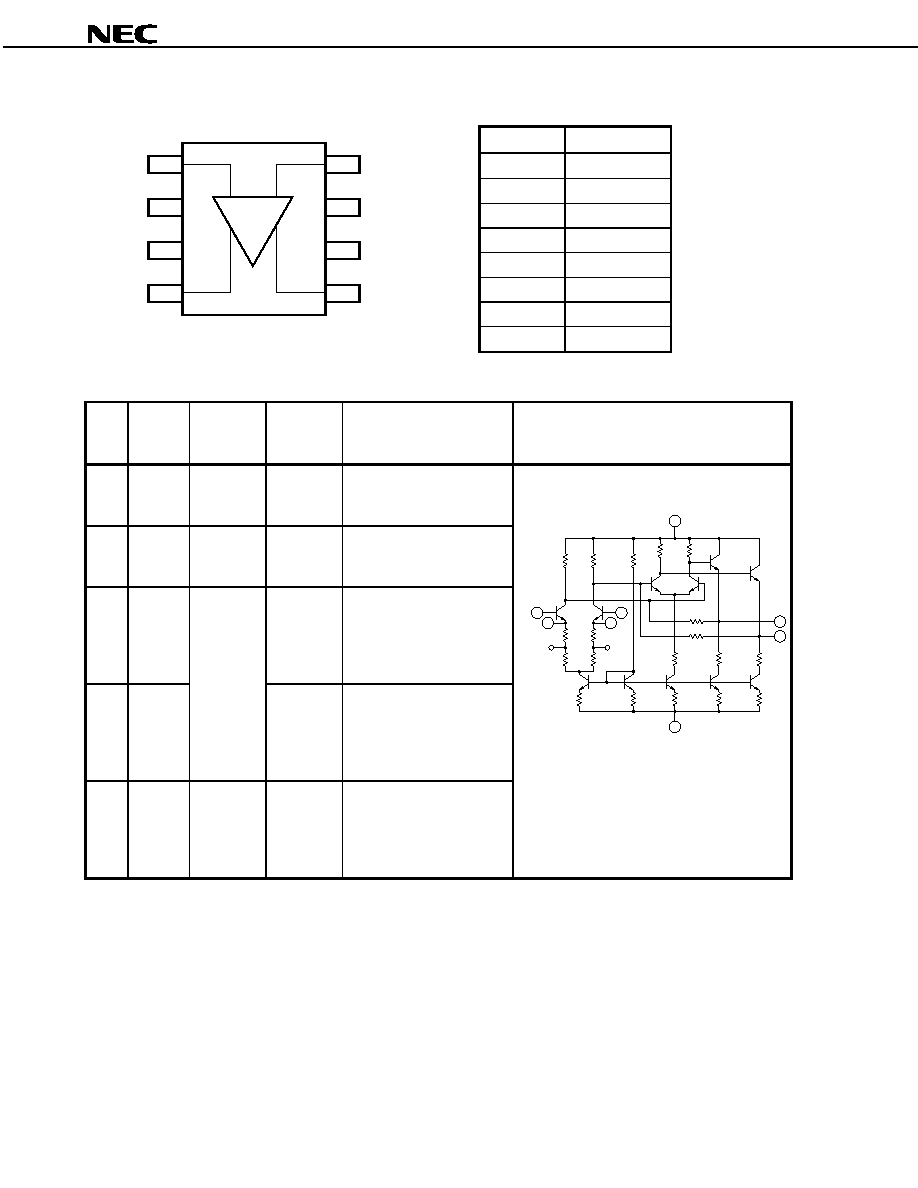

µµµµPC1663
CONNECTION DIAGRAM
PIN EXPLANATIONS
Pin
No.
Pin
Name
In Dual
Bias
(V)
In Single
Bias
(V)
Functions and Applications
Internal Equivalent Circuit
8
1
IN1
IN2
Pin
voltage
0
Apply
voltage
VCC/2
Input pin
5
4
OUT1
OUT2
Pin
voltage
0
Apply
voltage
VCC/2
Output pin
6VCC
+
±2 to ±6.5
–0.3 to +14
Plus voltage supply pin.
This pin should be
connected with bypass
capacitor to minimize AC
impedance.
3VCC
–
GND
Minus voltage supply pin.
This pin should be
connected with bypass
capacitor to minimize AC
impedance.
7
2
G1A
G1B
—
—
Gain adjustment pin.
External resistor from 0 to
10 k
Ω can be inserted
between pin 2 and 7 to
determine gain value.
(G2A)(G2B)
Note
Note
8
1
7
2
6
5
4
3
Internal circuit constants should be referred to
application note.
Note
µPC1664 which had G2A, G2B of the other gain adjustment pins is discontinued.
Pin No.
Pin Name
1IN2
2G1B
3VCC−
4OUT2
5OUT1
6VCC
+
7G1A
8IN1
8
7
6
5
1
(Top View)
2
3
4
