Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—March 2014

www.eaton.com

V7-T1-85

1.5

Pushbuttons and Indicating Lights

22.5 mm Modular Pushbuttons—M22

Product Selection

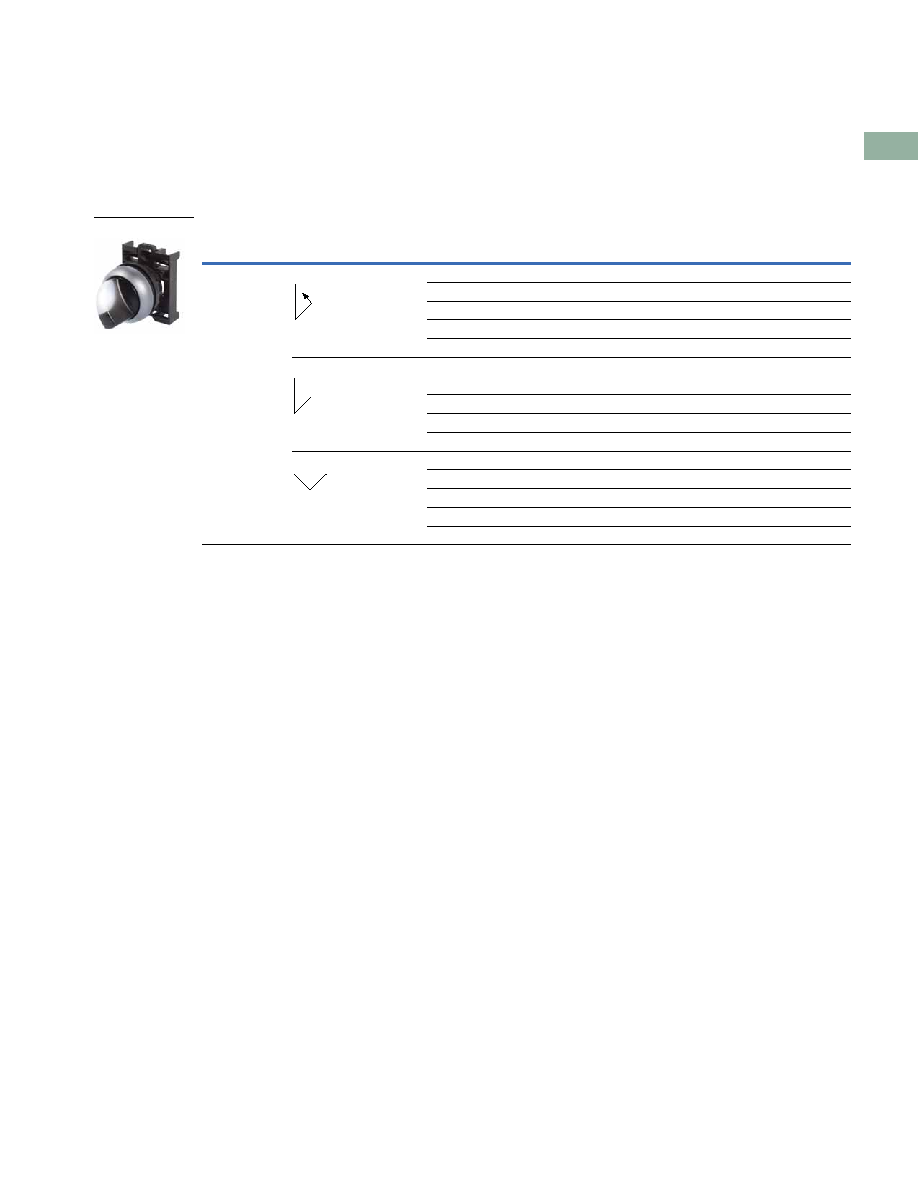

Illuminated Selector Switches

Components

Operators Only, Knob Type 1

Notes

1 Includes contact block mounting adapter.

2 Momentary selector switches can be converted in the field to maintained operation with the removal of a color coded

adapter. See Page V7-T1-118.

Type

Switching Position

Button Color

Silver Bezel

Catalog Number

Black Bezel

Catalog Number

Metal Bezel

Catalog Number

Two-position

Momentary 2

White

M22-WLK-W

M22S-WLK-W

M22M-WLK-W

Red

M22-WLK-R

M22S-WLK-R

M22M-WLK-R

Green

M22-WLK-G

M22S-WLK-G

M22M-WLK-G

Yellow

M22-WLK-Y

M22S-WLK-Y

M22M-WLK-Y

Blue

M22-WLK-B

M22S-WLK-B

M22M-WLK-B

Maintained

White

M22-WRLK-W

M22S-WRLK-W

M22M-WRLK-W

Red

M22-WRLK-R

M22S-WRLK-R

M22M-WRLK-R

Green

M22-WRLK-G

M22S-WRLK-G

M22M-WRLK-G

Yellow

M22-WRLK-Y

M22S-WRLK-Y

M22M-WRLK-Y

Blue

M22-WRLK-B

M22S-WRLK-B

M22M-WRLK-B

Maintained V

White

M22-WLKV-W

M22S-WLKV-W

M22M-WLKV-W

Red

M22-WLKV-R

M22S-WLKV-R

M22M-WLKV-R

Green

M22-WLKV-G

M22S-WLKV-G

M22M-WLKV-G

Yellow

M22-WLKV-Y

M22S-WLKV-Y

M22M-WLKV-Y

Blue

M22-WLKV-B

M22S-WLKV-B

M22M-WLKV-B

M22-WLK-W

40°

60°
