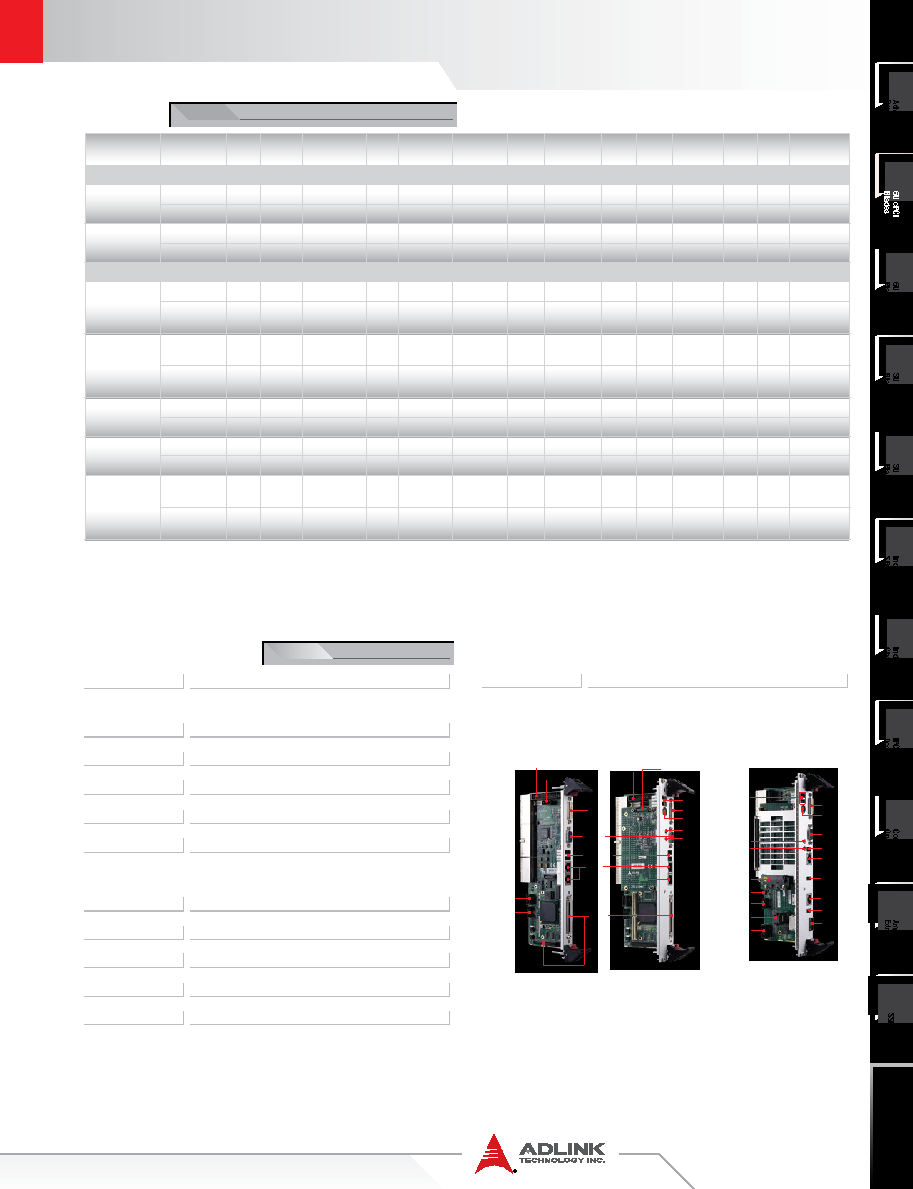

2 / 2 page  1 5 3 7 2 6 9 4 8 10 11 I/O Table (1) SATA connector and CF socket are removable adapters, share the same space and cannot be installed simultaneously. (2) Tx, Rx signals only (3) Two 7-pin signal connectors onboard for external HDDs and one direct connector for onboard 2.5” SATA HDD. Optional CompactFlash slot is supported by replacing SATA connector adapter with Compact Flash adapter. SATA HDD and CF cannot be used simultaneously. (4) Converted from USB Ordering Information Model Number Description/Configuration CPU Board cPCI-6920/S408/M2G 4HP cPCI-6920 with 1 x Quad-Core Xeon® 2.13GHz (L5408), 2GB SO-RDIMM cPCI-6920/S408/M4G 4HP cPCI-6920 with 1 x Quad-Core LV Xeon® 2.13GHz (L5408), 2x 2GB SO-RDIMM cPCI-6920D/S408/M4G 8HP cPCI-6920D with 1 x Quad-Core Xeon® 2.13GHz (L5408), 2x 2GB SO-RDIMM cPCI-6920D/D408/M8G 8HP cPCI-6920D with 2 x Quad-Core Xeon® 2.13GHz (L5408), 4x 2GB SO-RDIMM cPCI-6920D/D138/M2G 8HP cPCI-6920D with 2 x Dual-Core Xeon® 2.13GHz (5138), 2GB SO-RDIMM CF socket and SATA connector adapters are included in package Rear Transition Module cPCI-R6000 4HP Rear I/O module with GbE x2, COM x2, USB x3, Floppy, SATA x2, SCSI, VGA cPCI-R6000D 8HP Rear I/O module with GbE x2, COM x2, USB x5, Floppy, SATA x3, SCSI, VGA, PS/2 and Mic-in, Line-out cPCI-R6100 4HP Rear I/O module with GbE x4, COM, USB x4, SATA x2, DVI, VGA, PS/2, CF, SD cPCI-R6110 4HP Rear I/O module with GbE x2, COM, USB x4, SATA x3, VGA, PS/2, CF, SD cPCI-R6200 8HP Rear I/O module with GbE x2, USB x4, DVI-I, SATA x3, Mic-in, Line-out, PS/2 KB/MS, SAS x8 Mezzanine DB-CF-SA CompactFlash socket adapter kit for cPCI-R6000D, cPCI-R6200 Contact your ADLINK representative for different CPU, memory combinations. GbE USB 2.0 COM VGA PMC/ XMC SATA SCSI CF Mic- in Line- out PS/2 KB/MS FDD SD SAS SBC cPCI-6920 Faceplate 2 2 1 Onboard 1(1) 1(1) cPCI-6920D Faceplate 2 4 1 (DB-9) 1 Onboard 1 1(1) 1(1) 1 RTM cPCI-R6000 Faceplate 2 2 1 (DB-9) 1 1 Onboard 1 (5-pin) 1(2) (10-pin) 2 (7-pin) 1 1 cPCI-R6000D Faceplate 2 4 1 (DB-9) 1 1 1 1 1 Onboard 1 (5-pin) 1(2) (10-pin) 3(3) 1 1 (optional)(3) 1 cPCI-R6100 Faceplate 4 4 1 (RJ-45) 1 1 Onboard 2 (7-pin) 1(4) 1 cPCI-R6110 Faceplate 2 4 1 1 Onboard 3(3) 1(4) 1 cPCI-R6200 Faceplate 2 5 1 (DB-9) 1 1 1 1 4 (SFF-8088) Onboard 1 (5-pin) 1(2) (10-pin) 3(3) 1 (optional)(3) 4 (SFF-8087) cPCI-R6000D cPCI-R6000 KB/MS Line-out Mic-in RGB COM USB x2 GbE SCSI 7-pin SATA 10-pin RS-232 7-pin SATA Floppy Floppy RGB USB x2 Connector for SATA/CF adapter cPCI-R6200 USB x2 SATA Line-out Mic-in USB SATA iSAS COM DVI-I USB USB eSAS COM USB GbE GbE KB/MS |
|
|
