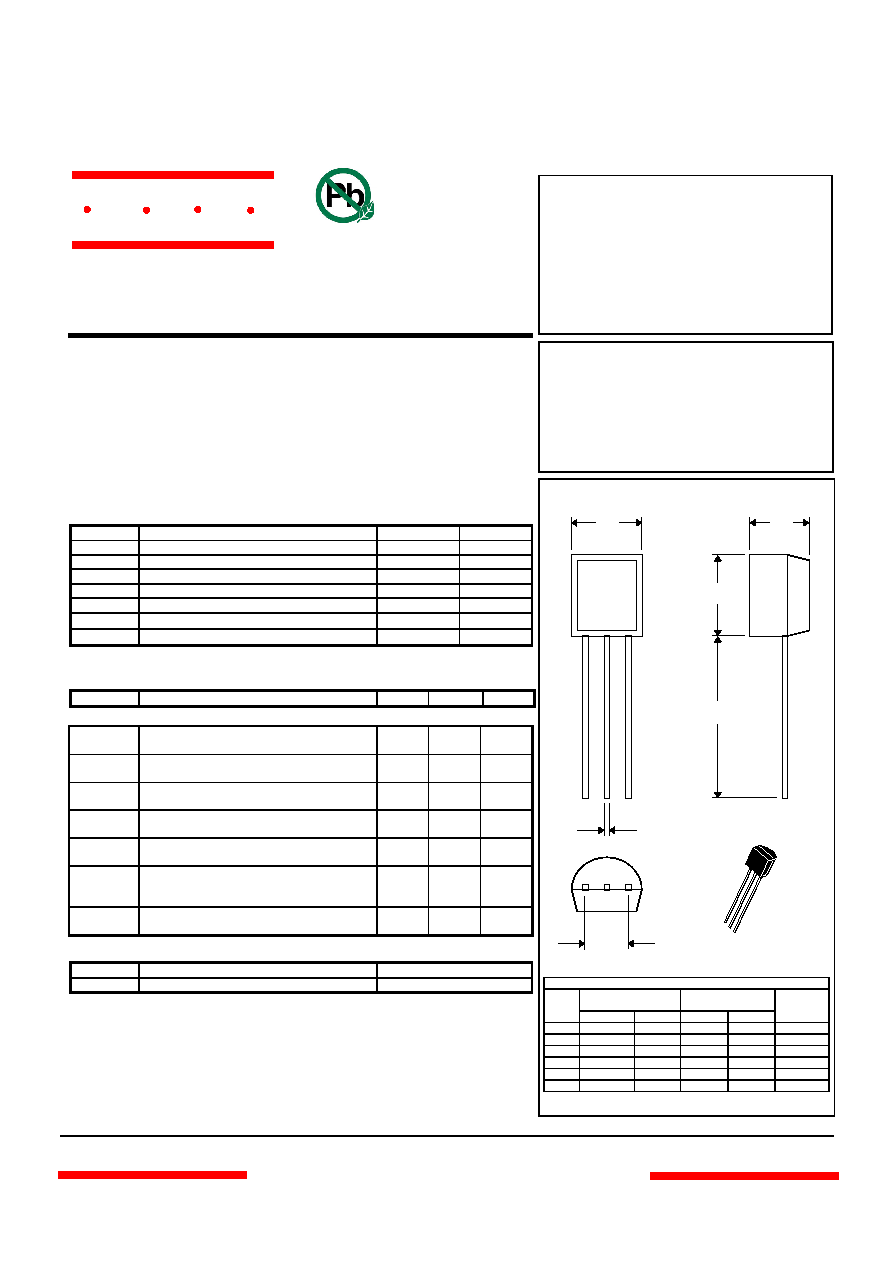

1 / 2 page  D965-T NPN Plastic-Encapsulate Transistors Features • Power Dissipation: PCM=0.75W @ Tamb=25 • Collector Current: ICM=5A Maximum Ratings Symbol Rating Rating Unit VCEO Collector-Emitter Voltage 22 V VCBO Collector-Base Voltage 42 V VEBO Emitter-Base Voltage 6.0 V IC Collector Current, Continuous 5 A PD Total Device Dissipation 750 mW TJ Operating Junction Temperature -55 to +150 TSTG Storage Temperature -55 to +150 Electrical Characteristics @ 25OC Unless Otherwise Specified Symbol Parameter Min Max Units OFF CHARACTERISTICS V(BR)CEO Collector-Emitter Breakdown Voltage* (IC=10mAdc, IB=0) 22 --- Vdc V(BR)CBO Collector-Base Breakdown Voltage (IC=100 µAdc, IE=0) 42 --- Vdc V(BR)EBO Emitter-Base Breakdown Voltage (IE=100 µAdc, IC=0) 6.0 --- Vdc ICBO Collector Cutoff Current (VCB=20Vdc, IE=0) --- 100 nAdc IEBO Base Cutoff Current (VEB=3.0Vdc, IC=0) --- 100 nAdc HFE DC Current Gain ( VCE=2V, IC=0.15mA) ( VCE=2V, IC=500mA) ( VCE=2V, IC=2000mA) 150 340 150 --- 950 --- VCE(sat) Collector-emitter Saturation Voltage (IC=3000mA, IB=100mA) --- 0.35 V Classification of HFE @( VCE=2V, IC=500mA) Rank R T Range 340-600 560-950 omponents 20736 Marilla Street Chatsworth !"# $% !"# MCC TO-92 A E B C D G Revision: A 2011/01/01 DIMENSIONS INCHES MM DIM MIN MAX MIN MAX NOTE A .170 .190 4.33 4.83 B .170 .190 4.30 4.83 C .550 .590 13.97 14.97 D .010 .020 0.36 0.56 E .130 .160 3.30 3.96 G .096 .104 2.44 2.64 TM Micro Commercial Components www.mccsemi.com 1 of 2 Marking: D965 T/R D965-R • Lead Free Finish/Rohs Compliant ("P"Suffix designates Compliant. See ordering information) • Epoxy meets UL 94 V-0 flammability rating • Moisure Sensitivity Level 1 E C B |
