CC2500-RTR1 Datasheet(PDF) 21 Page - Texas Instruments |
|
|
|||||||||||||||||||||||||||||
CC2500-RTR1 Datasheet(HTML) 21 Page - Texas Instruments |
|
|

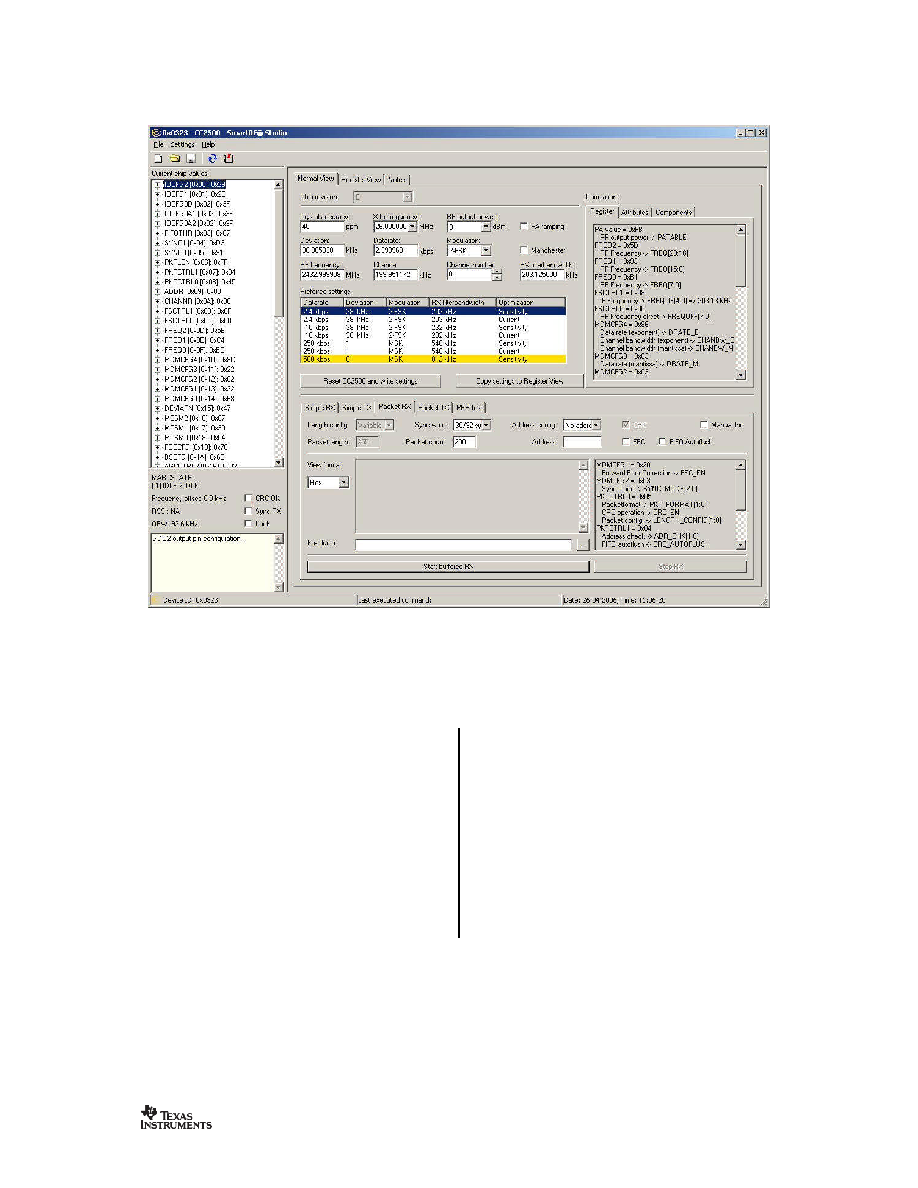

21 / 96 page  CC2500 SWRS040C Page 21 of 89 Figure 6: SmartRF Studio [5] User Interface 10 4-wire Serial Configuration and Data Interface CC2500 is configured via a simple 4-wire SPI- compatible interface (SI, SO, SCLK and CSn) where CC2500 is the slave. This interface is also used to read and write buffered data. All transfers on the SPI interface are done most significant bit first. All transactions on the SPI interface start with a header byte containing a R/W bit, a burst access bit (B), and a 6-bit address (A5 – A0). The CSn pin must be kept low during transfers on the SPI bus. If CSn goes high during the transfer of a header byte or during read/write from/to a register, the transfer will be cancelled. The timing for the address and data transfer on the SPI interface is shown in Figure 7 with reference to Table 16. When CSn is pulled low, the MCU must wait until CC2500 SO pin goes low before starting to transfer the header byte. This indicates that the crystal is running. Unless the chip was in the SLEEP or XOFF states, the SO pin will always go low immediately after taking CSn low. |
|
