LTRB-R37G datasheet(19/32 Pages) AMSOSRAM

19 / 32 page

LTRB R37G

DATASHEET

19 | Version 1.4 | 2025-12-03

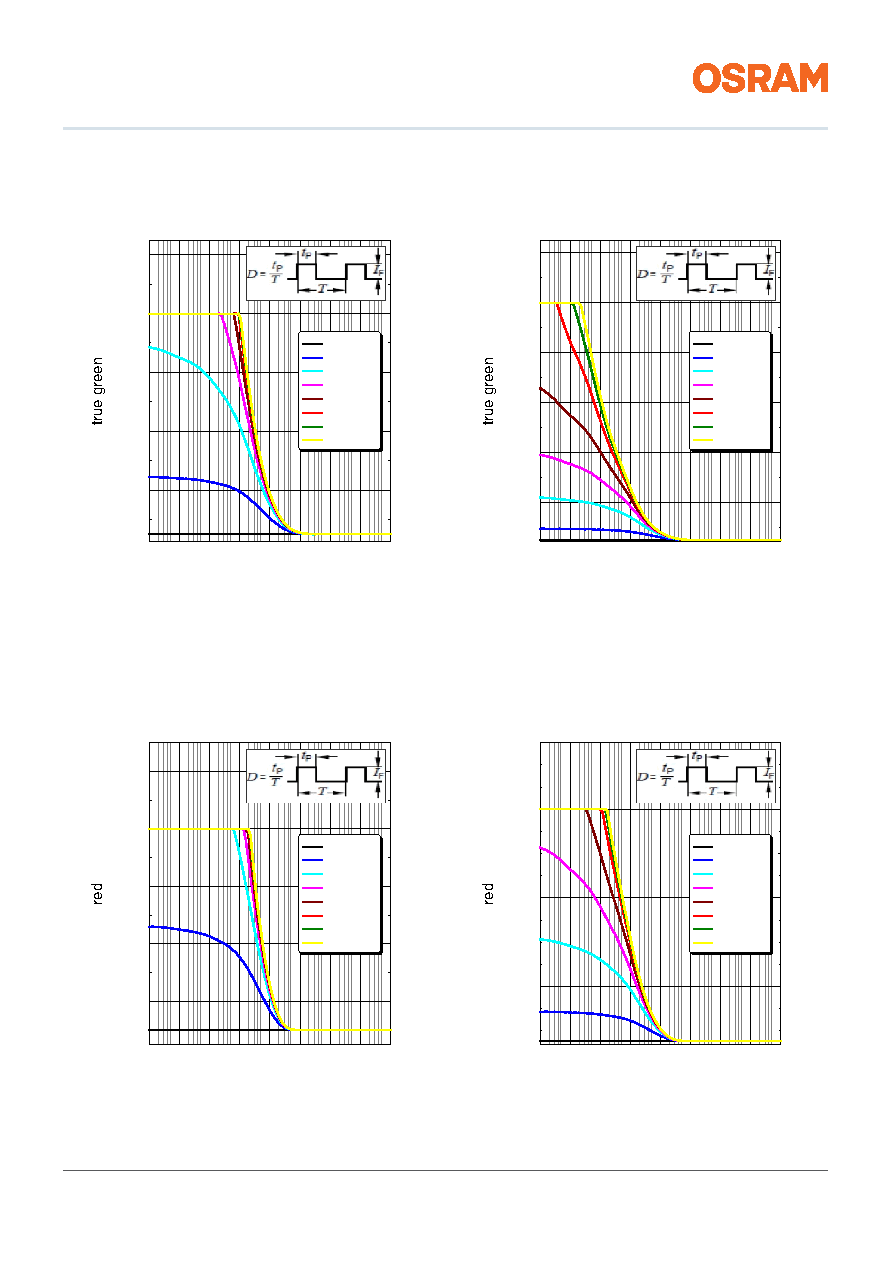

Permissible Pulse Handling Capability

F = f(tp); D: Duty cycle; ● true green

10-6 10-5 10-4 10-3 0.01 0.11

Pulsetime /s

100

120

IF /mA

TS =0°C ... 25°C

LTRB R37G

:D =1.0

:D =0.5

:D =0.2

:D =0.1

:D =0.05

:D =0.02

:D =0.01

:D =0.005

Permissible Pulse Handling Capability

F = f(tp); D: Duty cycle; ● true green

10-6 10-5 10-4 10-3 0.01 0.11

Pulsetime /s

100

120

IF /mA

TS = 85°C

LTRB R37G

:D =1.0

:D =0.5

:D =0.2

:D =0.1

:D =0.05

:D =0.02

:D =0.01

:D =0.005

Permissible Pulse Handling Capability

F = f(tp); D: Duty cycle; ● red

10-6 10-5 10-4 10-3 0.01 0.11

Pulsetime /s

IF /mA

TS =0°C ... 51°C

LTRB R37G

:D =1.0

:D =0.5

:D =0.2

:D =0.1

:D =0.05

:D =0.02

:D =0.01

:D =0.005

Permissible Pulse Handling Capability

F = f(tp); D: Duty cycle; ● red

10-6 10-5 10-4 10-3 0.01 0.11

Pulsetime /s

IF /mA

TS = 85°C

LTRB R37G

:D =1.0

:D =0.5

:D =0.2

:D =0.1

:D =0.05

:D =0.02

:D =0.01

:D =0.005
