CA-RSPRTPCN19 Datasheet(PDF) 1 Page - Infinite Electronics International, Inc. |
|
|
|||||||||||||||||||||||||||||
CA-RSPRTPCN19 Datasheet(HTML) 1 Page - Infinite Electronics International, Inc. |
|
|

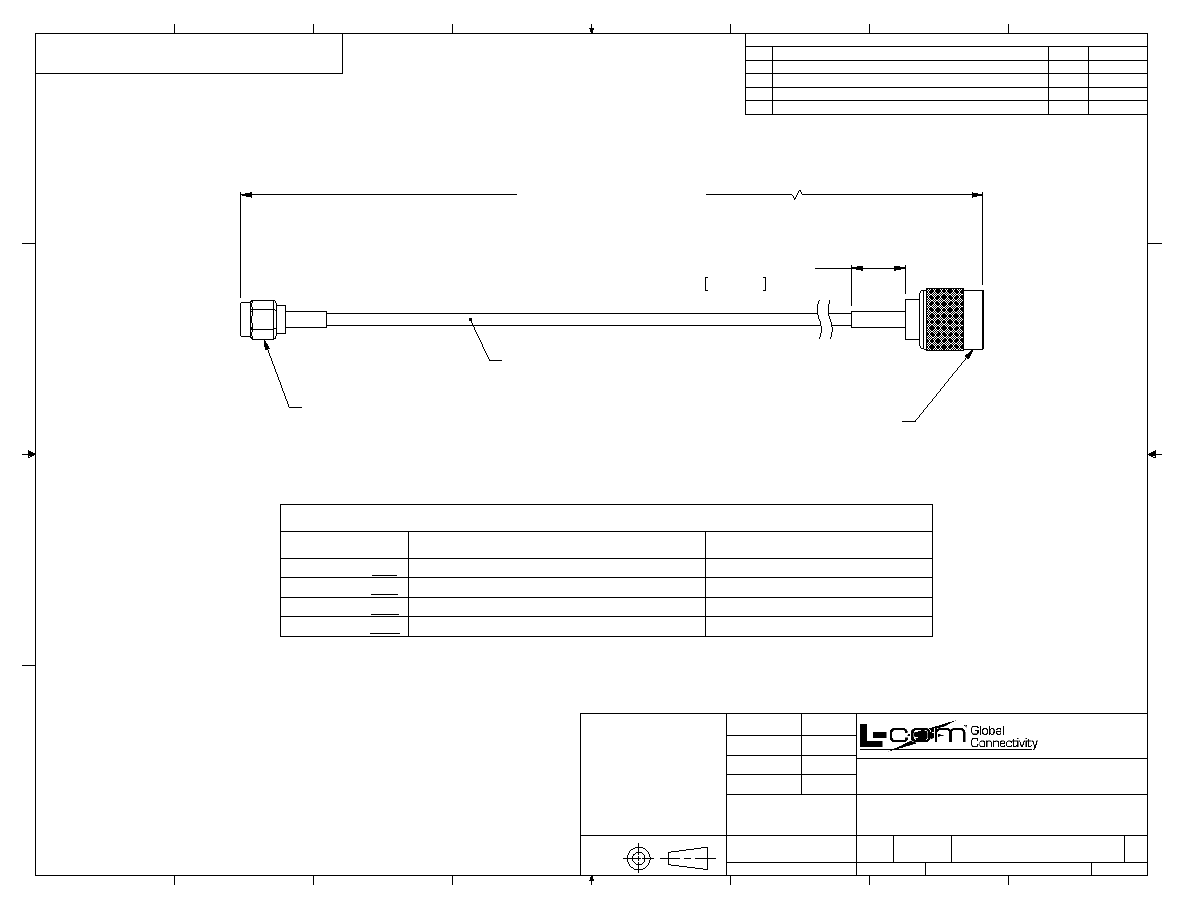

1 / 1 page  -LENGTH- (REF LENGTH CODE CHART) 1.00±.04 25.4±1.0 2X BLACK HEATSHRINK REVERSE POLARITY SMA PLUG STRAIGHT CRIMP CONNECTOR REVERSE POLARITY TNC PLUG STRAIGHT CRIMP CONNECTOR CA100, 50 Ω COAXIAL CABLE, BLACK NOTES: 1. CABLE ASSEMBLY SHALL BE TESTED FOR CONTINUITY. 2. CABLE ASSEMBLY SHALL BE RoHS COMPLIANT. 3. CABLE ASSEMBLY SHALL BE INDIVIDUALLY PACKAGED IN ACCORDANCE WITH L-COM SPECIFICATION PS-0031. LENGTH CODE CHART CABLE# & LENGTH LENGTH SYMBOL EXAMPLE OF PART# USED CA-RSPRTPCXXX WHERE XXX = LENGTH IN FEET CA-RSPRTPC010 (10 FEET) CA-RSPRTPCNXX WHERE XXX = LENGTH IN INCHES CA-RSPRTPCN16 (16 INCHES) CA-RSPRTPCMXX WHERE XXX = LENGTH IN METERS CA-RSPRTPCM070 (7 METERS) CA-RSPRTPCXMX WHERE XXX = LENGTH IN DECIMAL METERS CA-RSPRTPC3M5 (3.5 METERS) A B C D 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 SCALE: SIZE CAD FILE: DWG. NO. A SHEET OF REV. DATE APPROVALS DRAWN BY CHECKED BY APPROVED BY 1 2 3 4 5 6 7 8 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED. A B C D 1 2 3 4 5 6 7 8 CA-RSPRTPC A CA-RSPRTPC.SLDDRW 1 1 C. BRAN 03/26/2010 REVISIONS DESCRIPTION APPROVED REV DATE K. BURGNER 03/26/2010 3/29/10 A INITIAL RELEASE D.GRIFFIN CATEGORY PRODUCT DESCRIPTION DIMENSIONS ARE IN INCHES [mm] CONFIGURATION DETAILS OF UNDIMENSIONED FEATURES MAY VARY NONE FSCM NO. 43321 CA, CA100 RP-SMA P/RP-TNC P COAXIAL PROJECTION UNLESS OTHERWISE SPECIFIED, D. PARHAM COLOR VARIATIONS MAY OCCUR 03/25/2010 OVERALL CABLE LENGTH TOLERANCE: ≤12 [305] = +1 [25] / -0 >12 [305] ≤60 [1524] = +2 [51] / -0 >60 [1524] ≤120 [3048] = +4 [102] / -0 >120 [3048] ≤300 [7620] = +6 [152] / -0 >300 [7620] = +5% / -0% ALL OTHER DIMENSIONAL TOLERANCES: .X = ± .2 .XX = ± .02 .XXX = ±.005 |
