LD1085D2T-R Datasheet(PDF) 15 Page - STMicroelectronics

Part # LD1085D2T-R
Description  3 A low drop positive voltage regulator adjustable and fixed
PDF  28 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

LD1085D2T-R Datasheet(HTML) 15 Page - STMicroelectronics

Back Button LD1085D2T-R Datasheet HTML 11Page - STMicroelectronics LD1085D2T-R Datasheet HTML 12Page - STMicroelectronics LD1085D2T-R Datasheet HTML 13Page - STMicroelectronics LD1085D2T-R Datasheet HTML 14Page - STMicroelectronics LD1085D2T-R Datasheet HTML 15Page - STMicroelectronics LD1085D2T-R Datasheet HTML 16Page - STMicroelectronics LD1085D2T-R Datasheet HTML 17Page - STMicroelectronics LD1085D2T-R Datasheet HTML 18Page - STMicroelectronics LD1085D2T-R Datasheet HTML 19Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 15 / 28 page
background image
LD1085xx
Typical application
15/28

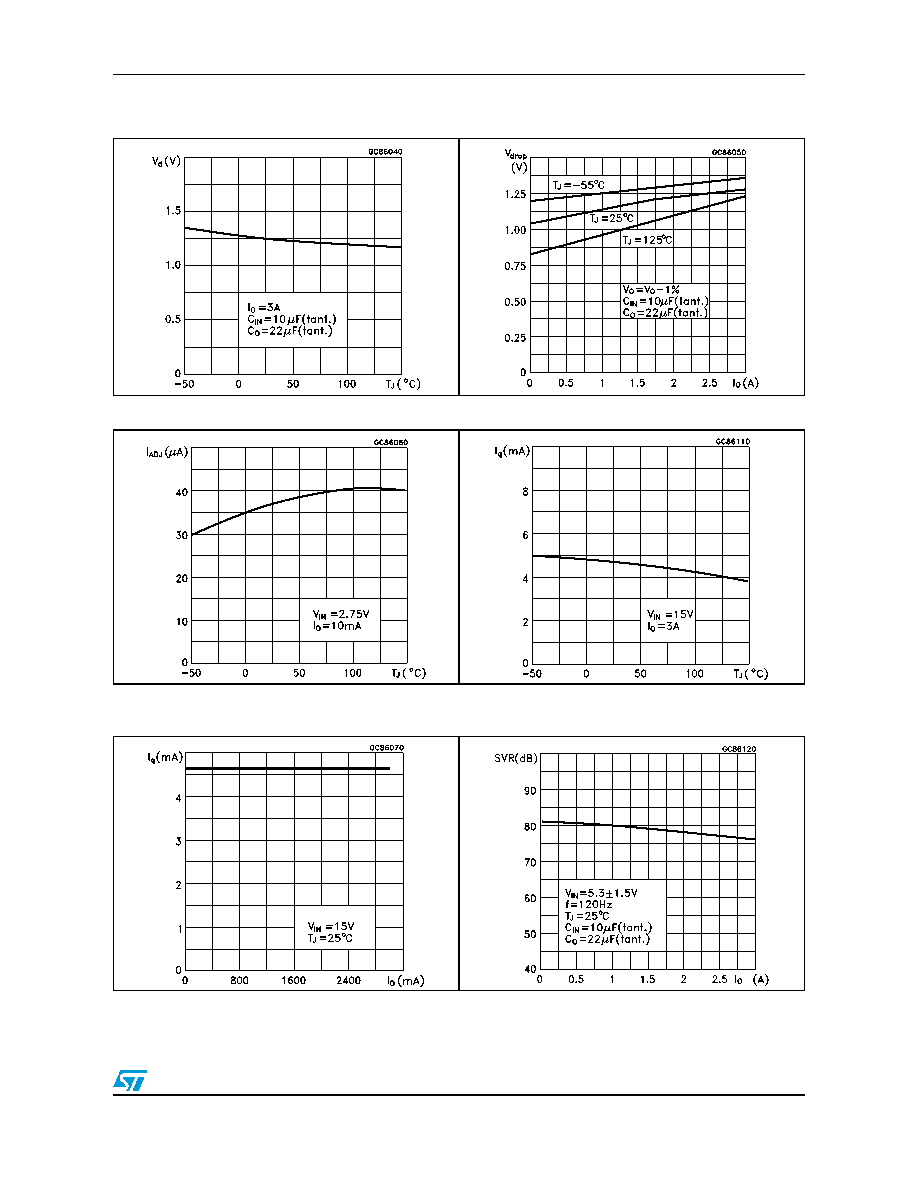

Figure 10.
Dropout voltage vs temperature
Figure 11.
Dropout voltage vs output current
Figure 12.
Adjust pin current vs temperature
Figure 13.
Quiescent current vs temperature
Figure 14.
Line regulation vs temperature
Figure 15.
Supply voltage rejection vs output
current
