AD822ARM-R2 Datasheet(PDF) 23 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
AD822ARM-R2 Datasheet(HTML) 23 Page - Analog Devices |
|

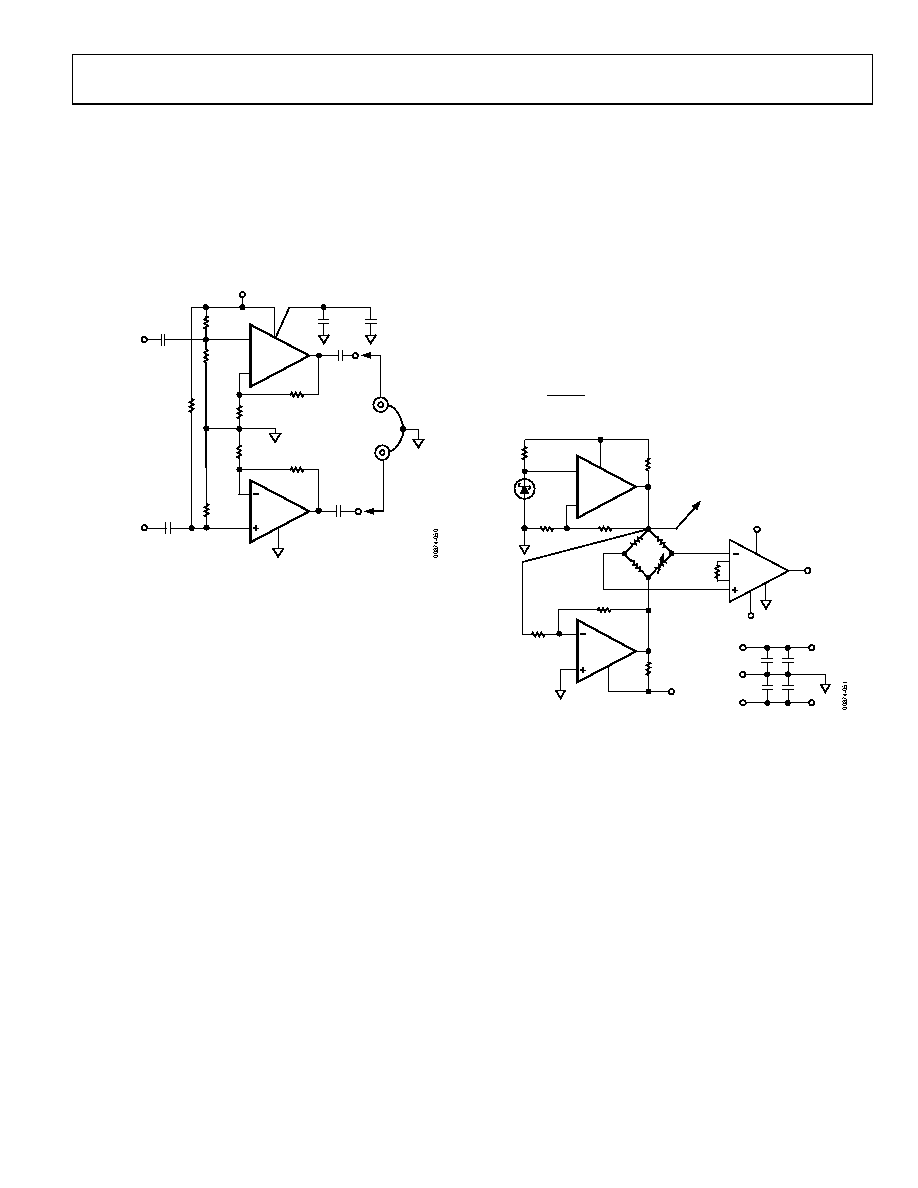

23 / 28 page ![]() AD822 Rev. G | Page 23 of 28 3 V, SINGLE-SUPPLY STEREO HEADPHONE DRIVER The AD822 exhibits good current drive and THD + N performance, even at 3 V single supplies. At 1 kHz, total harmonic distortion plus noise (THD + N) equals –62 dB (0.079%) for a 300 mV p-p output signal. This is comparable to other single-supply op amps that consume more power and cannot run on 3 V power supplies. 95.3kΩ L 47.5kΩ 47.5kΩ 10kΩ 10kΩ 4.99kΩ 95.3kΩ R HEADPHONES 32 Ω IMPEDANCE 3V + 4.99kΩ 8 1 2 3 7 6 5 4 0.1µF 0.1µF 500µF 500µF 1µF MYLAR 1µF MYLAR CHANNEL 1 CHANNEL 2 1/2 AD822 + – 1/2 AD822 Figure 50. 3 V Single-Supply Stereo Headphone Driver In Figure 50, each channel’s input signal is coupled via a 1 μF Mylar capacitor. Resistor dividers set the dc voltage at the non- inverting inputs so that the output voltage is midway between the power supplies (1.5 V). The gain is 1.5. Each half of the AD822 can then be used to drive a headphone channel. A 5 Hz high-pass filter is realized by the 500 μF capacitors and the headphones that can be modeled as 32 Ω load resistors to ground. This ensures that all signals in the audio frequency range (20 Hz to 20 kHz) are delivered to the headphones. LOW DROPOUT BIPOLAR BRIDGE DRIVER The AD822 can be used for driving a 350 Ω Wheatstone bridge. Figure 51 shows one-half of the AD822 being used to buffer the AD589, a 1.235 V low power reference. The output of 4.5 V can be used to drive an ADC converter front end. The other half of the AD822 is configured as a unity gain inverter and generates the other bridge input of −4.5 V. Resistor R1 and Resistor R2 provide a constant current for bridge excitation. The AD620 low power instrumentation amplifier is used to condition the differential output voltage of the bridge. The gain of the AD620 is programmed using an external resistor RG and determined by 1 9 . 49 + Ω = G R k G +1.235V 49.9kΩ R1 20Ω 25.4kΩ 1% 10kΩ 1% 350Ω 350Ω 350Ω 350Ω RG AD589 10kΩ 1% 10kΩ 1% R2 20Ω –4.5V GND +5V –5V 1/2 AD822 + – 1/2 AD822 8 3 2 1 +VS +VS –VS VREF +VS –VS –VS AD820 + – 3 2 4 5 6 7 0.1µF 0.1µF 1µF 1µF ++ ++ 6 5 7 4 TO A/D CONVERTER REFERENCE INPUT Figure 51. Low Dropout Bipolar Bridge Driver |
|
