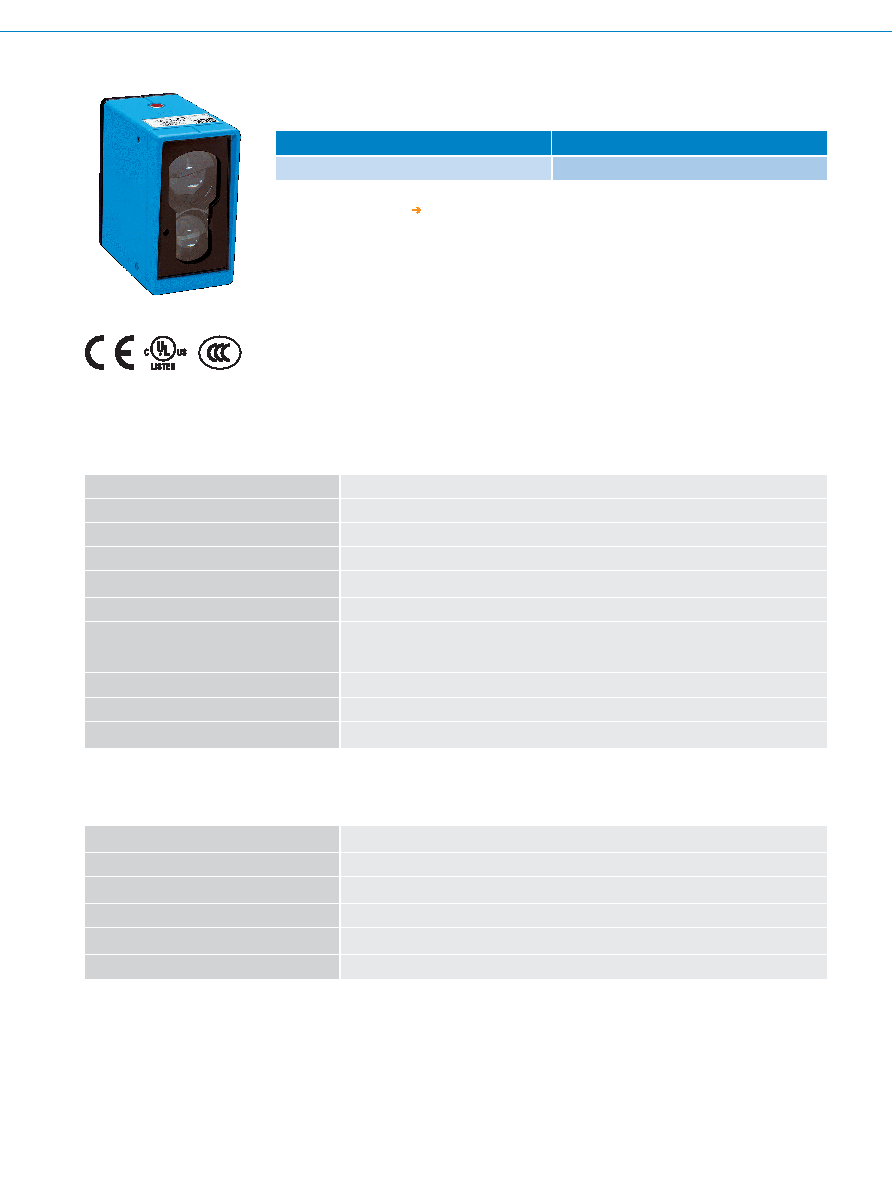

WT45-R260 | W45

COMPACT PHOTOELECTRIC SENSORS

Illustration may differ

Ordering information

Type

Part no.

WT45-R260

1009107

Other models and accessories

www.sick.com/W45

Detailed technical data

Features

Functional principle

Photoelectric proximity sensor

Functional principle detail

Background suppression

Dimensions (W x H x D)

60 mm x 105 mm x 105 mm

Housing design (light emission)

Rectangular

Sensing range max.

200 mm ... 2,000 mm 1)

Sensing range

200 mm ... 2,000 mm

Type of light

Infrared light

Light source

LED 2)

Light spot size (distance)

Ø 35 mm (2,000 mm)

Adjustment

Potentiometer

Special features

Cable gland, for cross-section: 0,14 mm2 ... 2,5 mm2, max. 16 A

1) Object with 90% remission (based on standard white, DIN 5033).

2) Average service life: 100,000 h at TU = +25 °C.

Mechanics/electronics

Supply voltage

20 V AC/DC ... 250 V AC/DC 1)

Power consumption

≤ 3 VA

Switching output

Relay, electrically isolated 2)

Output function

Change-over contacts

Switching mode

Light/dark switching 2)

Switching mode selector

Selectable via time delay selector switch

1) Limit values.

2) Provide suitable spark suppression for inductive or capacitive loads.

3) With light/dark ratio 1:1.

4) A = VS connections reverse-polarity protected.

5) C = interference suppression.

6) Up to 140 °C with cooling plates (see accessories).

2
