AB-RTC-TH-32.768kHz-2
Real Time Clock Module with I2C Bus
Revision:
Initial Release 12/10/2024
Page 6
Disclaimer
lign
Check Inventory
R
t S
l
lign
Request Samples
Pad #
Function
Description
1
FOE
FOUT output control pin. “1” - enable FOUT, “0”-
FOUT Hi-Z
2
VDD
Power supply
3
VBAT
Backup battery pin. Connect to large-capacity
capacitors or a backup battery.Connect to VDDwhen
switchover function is not necessary
4
FOUT
Frequency output. Controlled by FOE. Frequency can
be set by FSEL bits.
5
SCL
I2C clock signal
6
T1
Do not connect
7
SDA
I2C data signal
8
T2
Do not connect
9
GND
Ground
10
/INT
Interrupt Output, Open-Drain; Waveforms can be output
in backup mode;

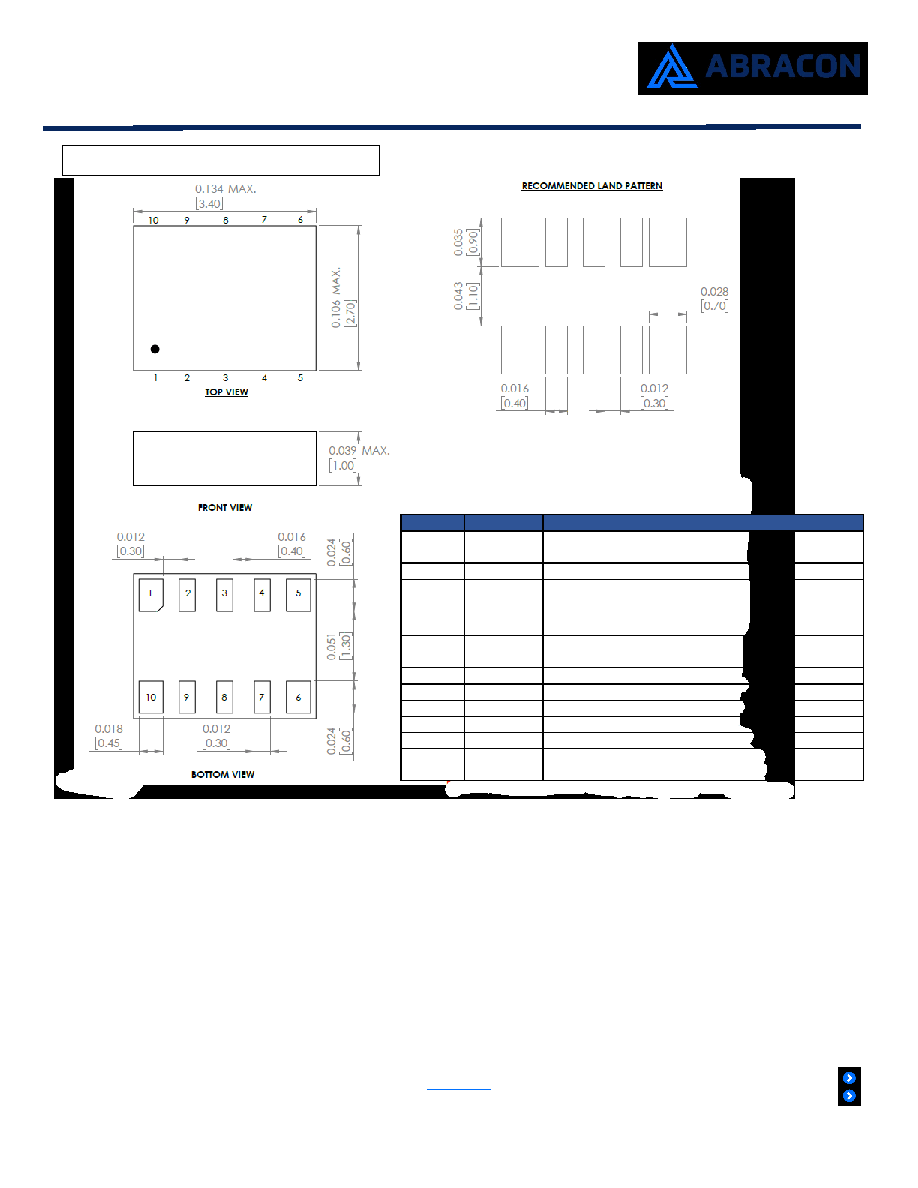

Mechanical Dimensions
Dimensions: inches[mm]
