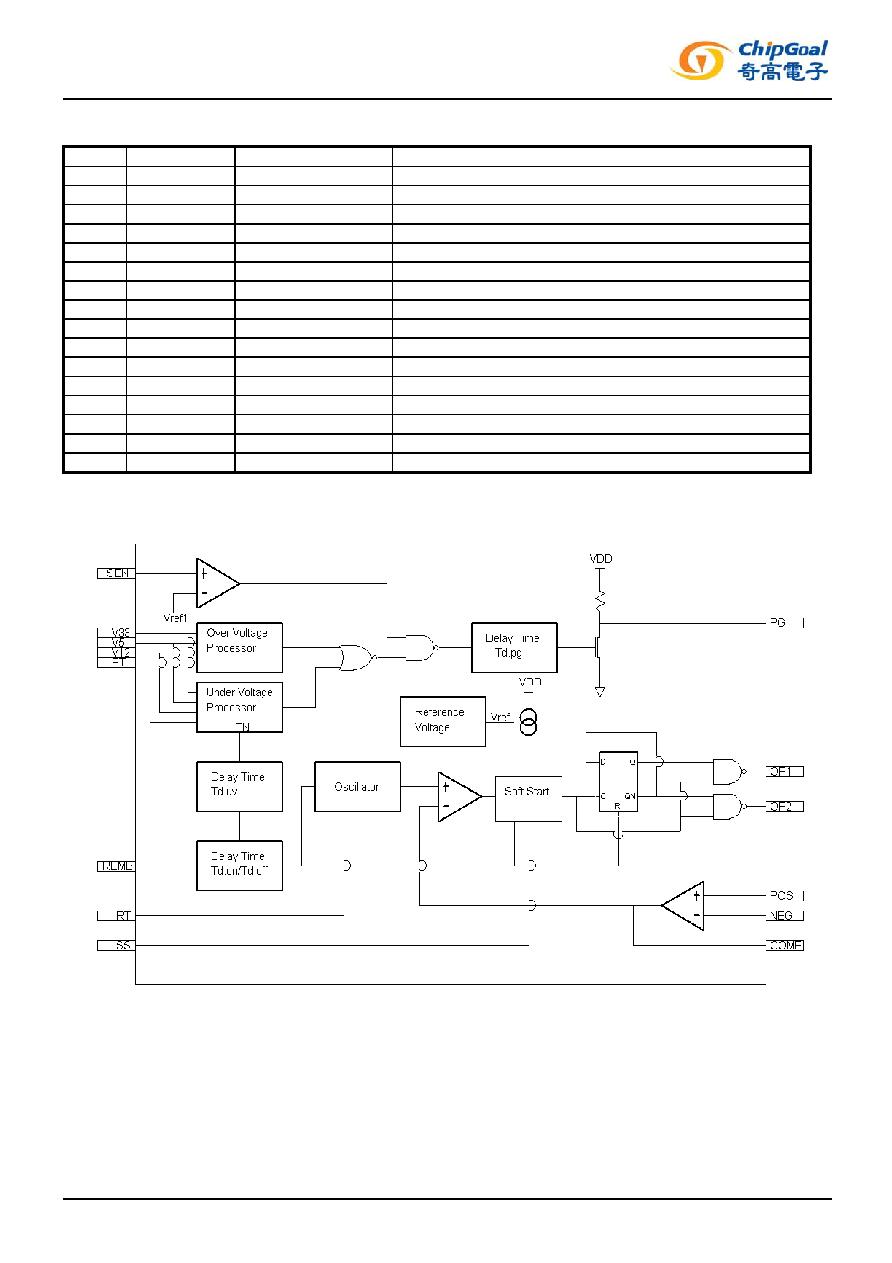

background image
CG8010
POWER SUPPLY SUPERVISOR WITH PWM CONTROLLER
October 4, 2007 – Rev. 0.30
datasheet
YT
2
PIN DESCRIPTION
Pin
Symbol
Type
Function
1
V33
I
OVP, UVP for +3.3V
2
V5
I
OVP, UVP for +5V
3
V12
I
OVP, UVP for +12V
4
PT
I
Extra protection input
5
GND
-
Ground
6
RT
-
Oscillation frequency setting resistor
7
OP1
O
PWM output1
8
OP2
O
PWM output2
9
REM
I
Remote ON/OFF control input
10
SS
-
Soft start function setting capacitor
11
PG
O
Power good signal
12
SEN
I
Sense signal input
13
VCC
I
Supply voltage
14
COMP
O
Error amplifier output
15
NEG
I
Error amplifier (-) input
16
POS
I
Error amplifier (+) input
FUNCTION BLOCK DIAGRAM
