LA55-TP Datasheet(PDF) 3 Page - LEM |
|
|
|||||||||||||||||||||||||||||
LA55-TP Datasheet(HTML) 3 Page - LEM |
|
|

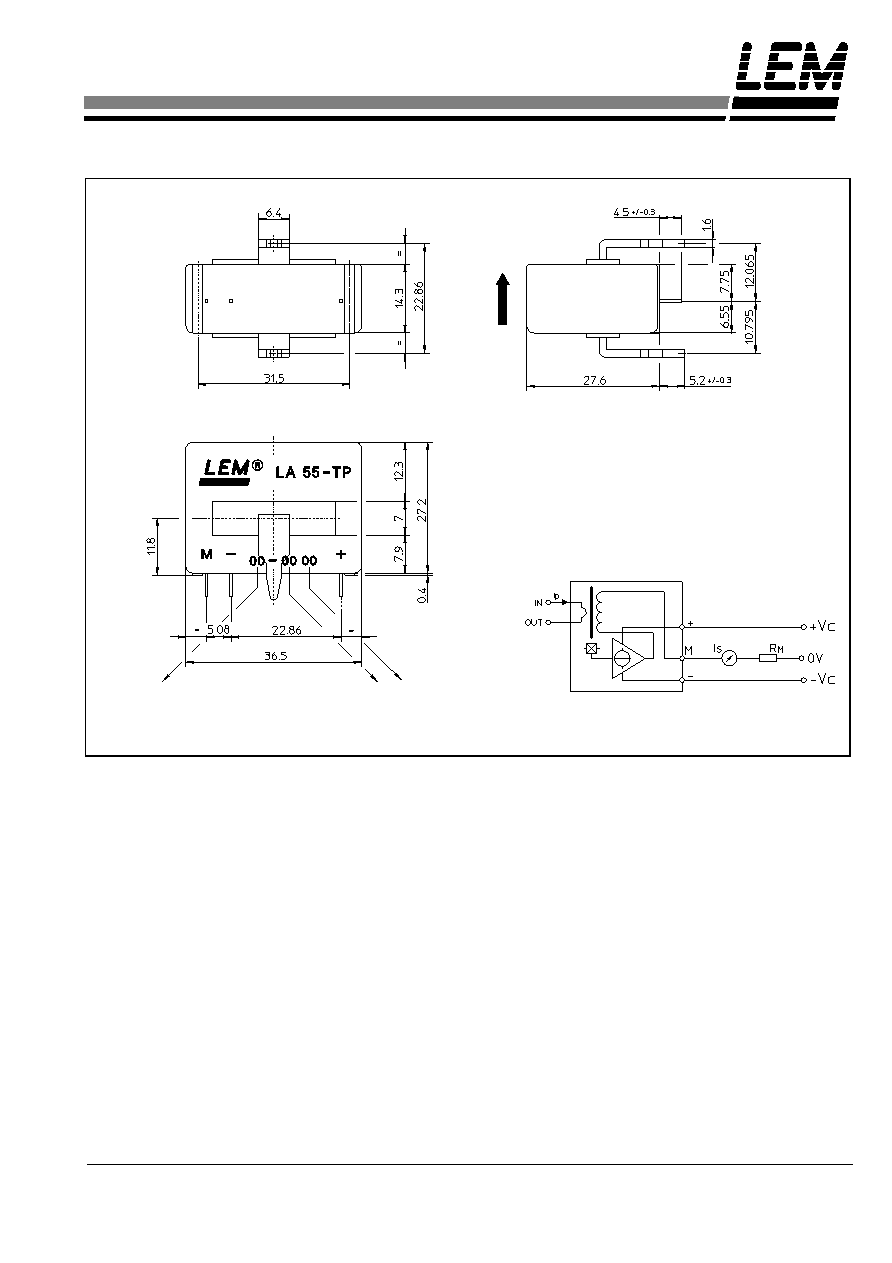

3 / 3 page  LEM www .lem.com LEM reserves the right to carry out modifications on its transducers, in order to improve them, without previous notice. 060126/7 Page 3/3 Standard 00 Year Week or N° SP.. Connection Remarks • I S is positive when IP flows in the direction of the arrow. • Temperature of the primary conductor should not exceed 90°C. • This is a standard model. For different versions (supply voltages, turns ratios, unidirectional measurements...), please contact us. Mechanical characteristics • General tolerance ± 0.2 mm • Fastening & connection of primary bus bar 6.4 x 1.6 mm Recommended PCB hole 3.8 mm • Fastening & connection of secondary 3 pins 0.63 x 0.56 mm Recommended PCB hole 0.9 mm Dimensions LA 55-TP (in mm. 1 mm = 0.0394 inch) Bottom view Front view Left view |
|
|
