ADCMP603BCPZ-R2 Datasheet(PDF) 9 Page - Analog Devices

Part # ADCMP603BCPZ-R2
Description  Rail-to-Rail, Very Fast, 2.5 V to 5.5 V, Single-Supply TTL/CMOS Comparator
PDF  16 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADCMP603BCPZ-R2 Datasheet(HTML) 9 Page - Analog Devices

Back Button ADCMP603BCPZ-R2 Datasheet HTML 5Page - Analog Devices ADCMP603BCPZ-R2 Datasheet HTML 6Page - Analog Devices ADCMP603BCPZ-R2 Datasheet HTML 7Page - Analog Devices ADCMP603BCPZ-R2 Datasheet HTML 8Page - Analog Devices ADCMP603BCPZ-R2 Datasheet HTML 9Page - Analog Devices ADCMP603BCPZ-R2 Datasheet HTML 10Page - Analog Devices ADCMP603BCPZ-R2 Datasheet HTML 11Page - Analog Devices ADCMP603BCPZ-R2 Datasheet HTML 12Page - Analog Devices ADCMP603BCPZ-R2 Datasheet HTML 13Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 9 / 16 page
background image
ADCMP603
Rev. 0 | Page 9 of 16
8
7
6
5
4
2
3
OVERDRIVE (mV)
0
10 20 30 40 50 60 70 80 90 100 110 120
140
130
500mV/DIV
M2.00ns

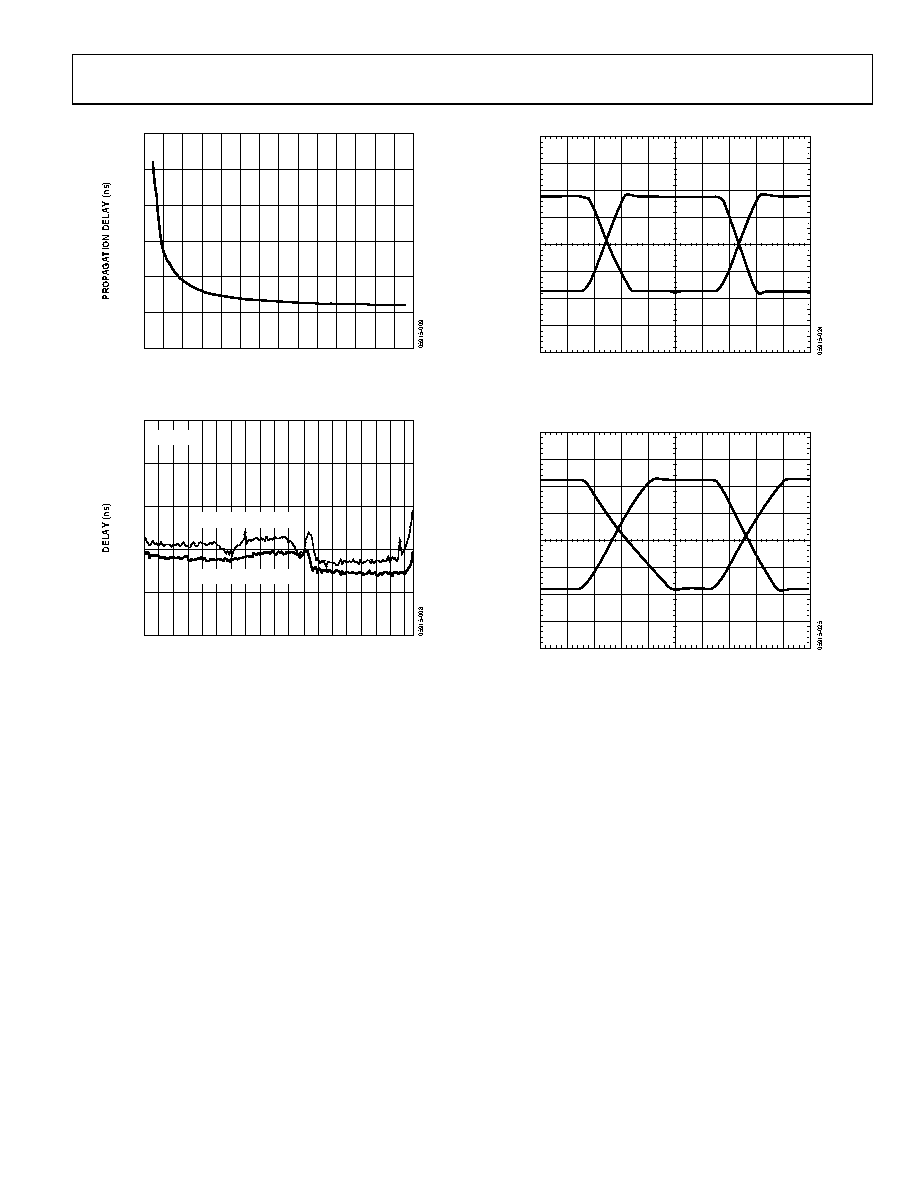

Figure 10. Propagation Delay vs. Input Overdrive
