13 / 23 page

13/23

VIPer50/SP - VIPer50A/ASP

UVLO logic, the device turns into active mode and

starts switching.

The start up current generator is switched off, and

the converter should normally provide the needed

current on the VDD pin through the auxiliary

winding of the transformer, as shown on figure 15.

In case of abnormal condition where the auxiliary

winding is unable to provide the low voltage supply

current to the VDD pin (i.e. short circuit on the

output of the converter), the external capacitor

discharges itself down to the low threshold voltage

VDDoff of the UVLO logic, and the device gets back

to the inactive state where the internal circuits are

in standby mode and the start up current source is

activated. The converter enters an endless start

up cycle, with a start-up duty cycle defined by the

ratio of charging current towards discharging when

the VIPer50/50A tries to start. This ratio is fixed by

design from 2 to 15, which gives a 12% start up

duty cycle while the power dissipation at start up is

approximately 0.6 W, for a 230 Vrms input voltage.

This low value of start-up duty cycle prevents the

stress

of

the

output

rectifiers

and

of

the

transformer when in short circuit.

The external capacitor CVDD on the VDD pin must

be sized according to the time needed by the

converter to start up, when the device starts

switching. This time tSS depends on many

parameters, among which transformer design,

output

capacitors,

soft

start

feature

and

compensation network implemented on the COMP

pin. The following formula can be used for defining

the minimum capacitor needed:

where:

IDD is the consumption current on the VDD pin

when switching. Refer to specified IDD1 and IDD2

values.

tSS is the start up time of the converter when the

device begins to switch. Worst case is generally at

full load.

VDDhyst is the voltage hysteresis of the UVLO

logic. Refer to the minimum specified value.

Soft start feature can be implemented on the

COMP pin through a simple capacitor which will

also be used as the compensation network. In this

case, the regulation loop bandwidth is rather low,

because of the large value of this capacitor. In

case of a large regulation loop bandwidth is

mandatory, the schematics in figure 16 can be

used. It mixes a high performance compensation

network together with a separate high value soft

start capacitor. Both soft start time and regulation

loop bandwidth can be adjusted separately.

If the device is intentionally shut down by putting

the COMP pin to ground, the device is also

performing start-up cycles, and the VDD voltage is

oscillating between VDDon and VDDoff.

This voltage can be used for supplying external

functions, provided that their consumption doesn’t

exceed 0.5mA. Figure 17 shows

a typical

application of this function, with a latched shut

down. Once the "Shutdown" signal has been

activated, the device remains in the off state until

the input voltage is removed.

C

VDD

I

DD

t

SS

V

DDhyst

--------------------------

>

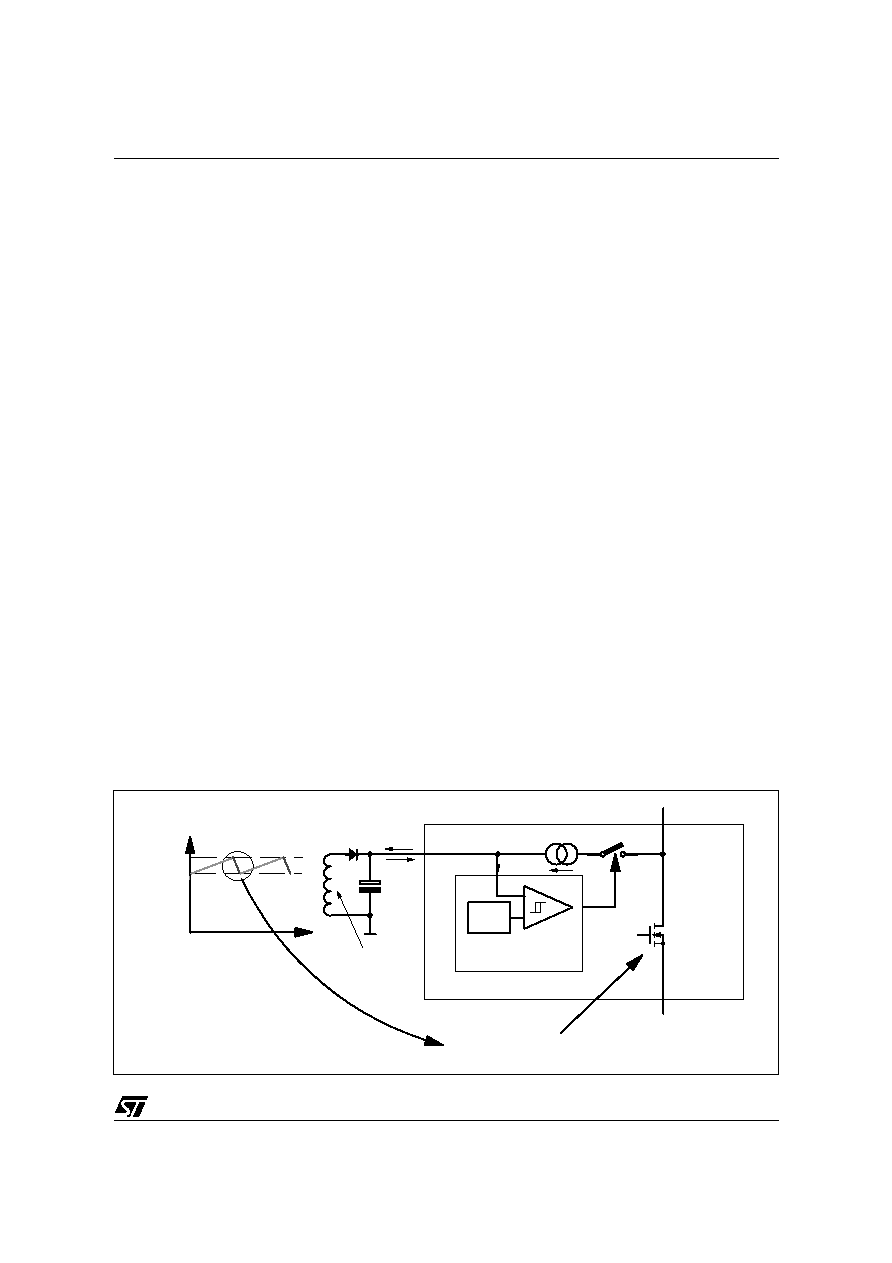

Figure 15: Behavior of the high voltage current source at start-up

Ref.

UNDERVOLTAGE

LOCK OUT LOGIC

15 mA

1 mA

3 mA

2 mA

15 mA

VDD

DRAIN

SOURCE

VIPer50

Auxiliary primary

winding

VDD

t

VDDoff

VDDon

Start up duty cycle ~ 12%

CVDD

FC00320
