MODEL: R5-RSA

R5-RSA SPECIFICATIONS

ES-6130 Rev.4 Page 2/3

http://www.m-system.co.jp/

EXTERNAL VIEW

Euro Type

Connector Terminals

RUN LED

4 5 6

1 2 3

1 2 3 4 5 6 7 8

RUN

RTD

Burnout

Temp. Unit

Function

■ SIDE VIEW

■ FRONT VIEW

INPUT DATA DESCRIPTIONS

■ ANALOG DATA (TEMPERATURE DATA)

0

15

16-bit binary data.

With °C temperature unit, raw data is multiplied by 100. For example, 25.5°C is converted into 2550.

With °F temperature unit, raw data is multiplied by 10. For example, 135.4°F is converted into 1354.

Minus temperature is converted into negative values, represented in 2’s complements.

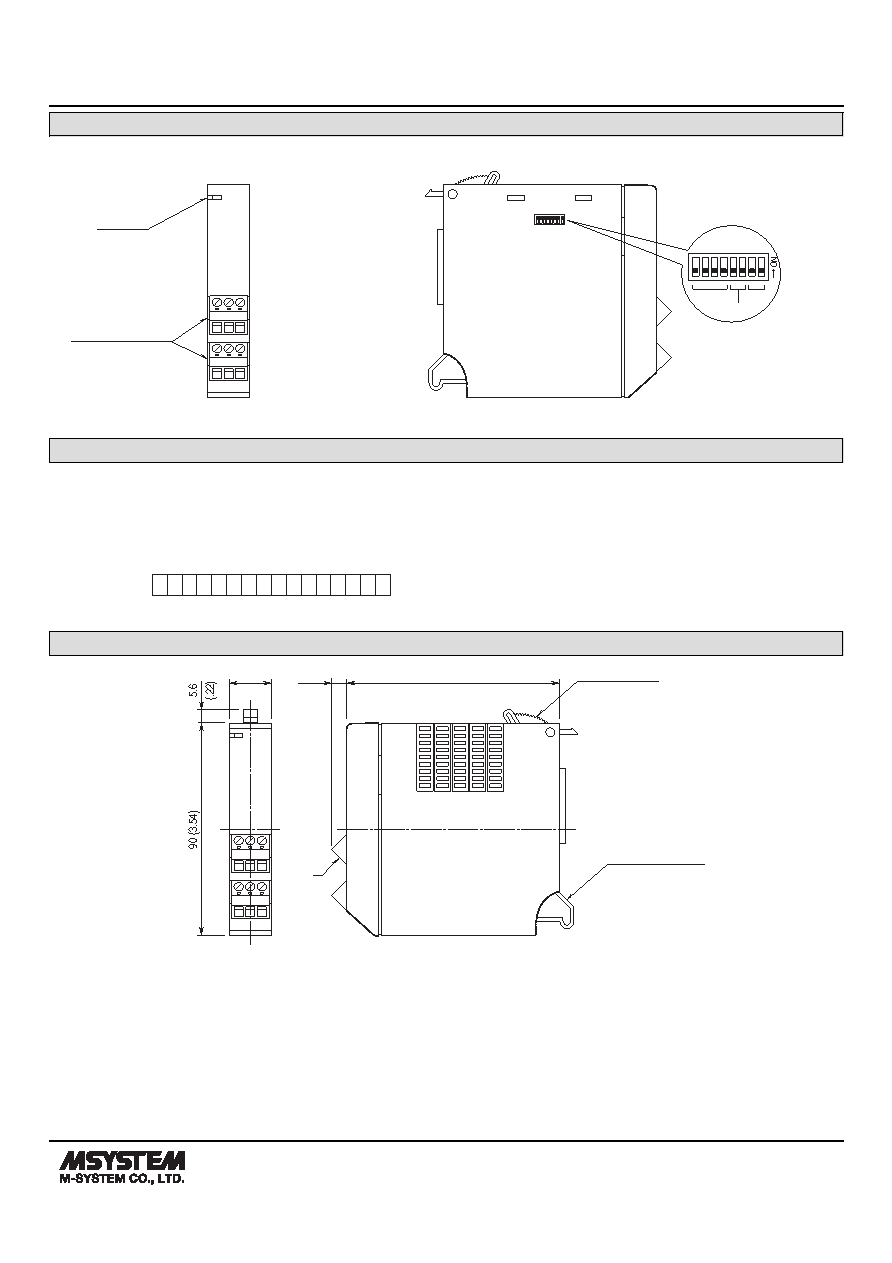

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

4 5 6

1 2 3

6.5

(.26)

90 (3.54)

LOCKING CLAMP

18 (.71)

POSITIONING GUIDE

*

*Euro type connector terminals (4, 5 and 6) provided only with 2-ch. option.
