MPIA4020V2-R68-R Datasheet(PDF) 10 Page - Eaton All Rights Reserved.

Part # MPIA4020V2-R68-R
Description  Automotive grade High current, low profile, miniature power inductors
PDF  22 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  EATON [Eaton All Rights Reserved.]
Direct Link  https://www.eaton.com
Logo EATON - Eaton All Rights Reserved.

MPIA4020V2-R68-R Datasheet(HTML) 10 Page - Eaton All Rights Reserved.

Back Button MPIA4020V2-R68-R Datasheet HTML 6Page - Eaton All Rights Reserved. MPIA4020V2-R68-R Datasheet HTML 7Page - Eaton All Rights Reserved. MPIA4020V2-R68-R Datasheet HTML 8Page - Eaton All Rights Reserved. MPIA4020V2-R68-R Datasheet HTML 9Page - Eaton All Rights Reserved. MPIA4020V2-R68-R Datasheet HTML 10Page - Eaton All Rights Reserved. MPIA4020V2-R68-R Datasheet HTML 11Page - Eaton All Rights Reserved. MPIA4020V2-R68-R Datasheet HTML 12Page - Eaton All Rights Reserved. MPIA4020V2-R68-R Datasheet HTML 13Page - Eaton All Rights Reserved. MPIA4020V2-R68-R Datasheet HTML 14Page - Eaton All Rights Reserved. Next Button
Zoom Inzoom in Zoom Outzoom out
 10 / 22 page
background image
10
Technical Data
10652
Effective April 2017
www.eaton.com/electronics
MPIA40-V2
Automotive grade
High current, low profile, miniature power inductors

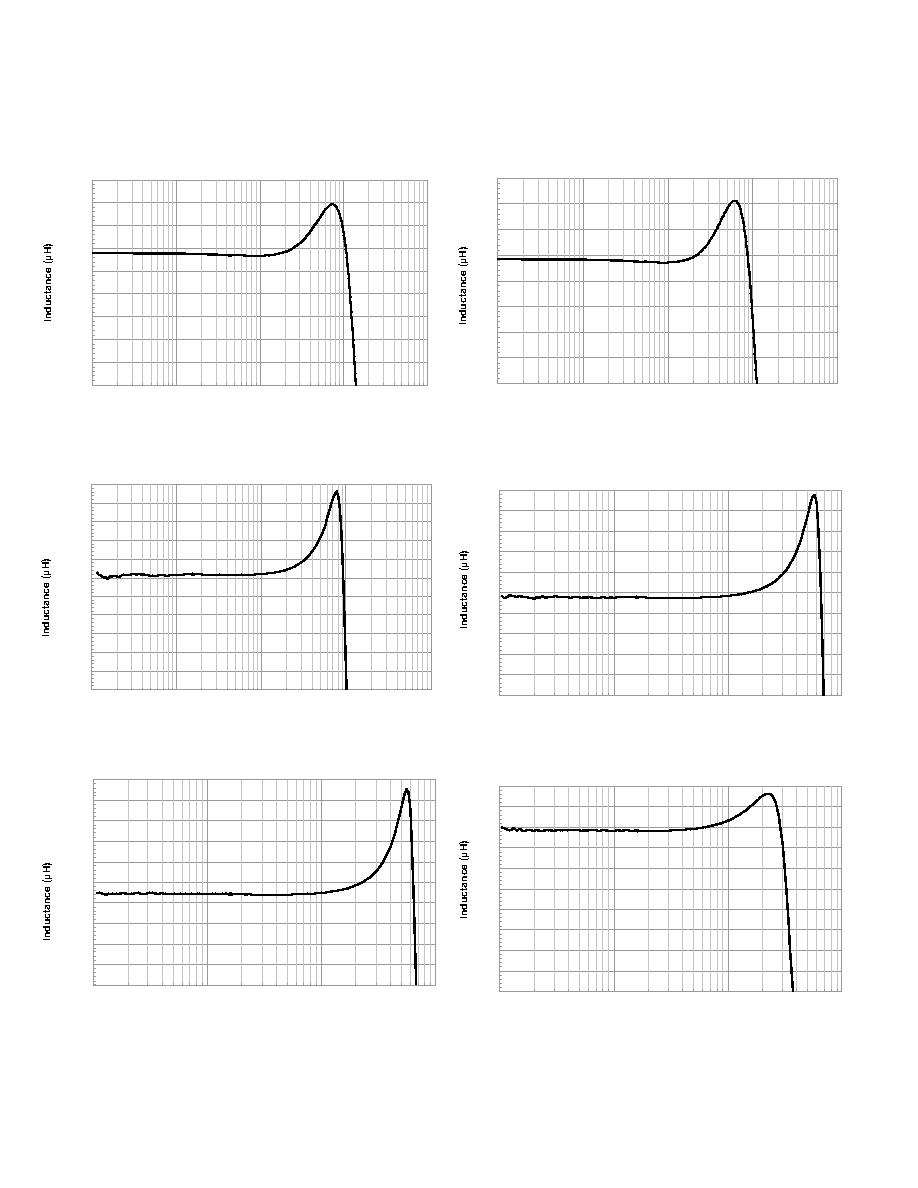

Inductance vs. Frequency
0
0.05
0.1
0.15
0.2
0.25
0.3
0.35
0.4
0.45
0.1
1
10
100
1000
Frequency (MHz)
MPIA4012V2-R33-R
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.1
1
10
100
1000
Frequency (MHz)
MPIA4012V2-R47-R
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
0.1
1
10
100
1000
Frequency (MHz)
MPIA4012V2-R68-R
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
0.1
1
10
100
Frequency (MHz)
MPIA4012V2-1R0-R
0
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3
0.1
1
10
100
Frequency (MHz)
MPIA4012V2-1R5-R
0
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3
0.1
1
10
100
Frequency (MHz)
MPIA4012V2-2R2-R
