Technical Data
10652
Effective April 2017
MPIA40-V2
Automotive grade
High current, low profile, miniature power inductors
www.eaton.com/electronics

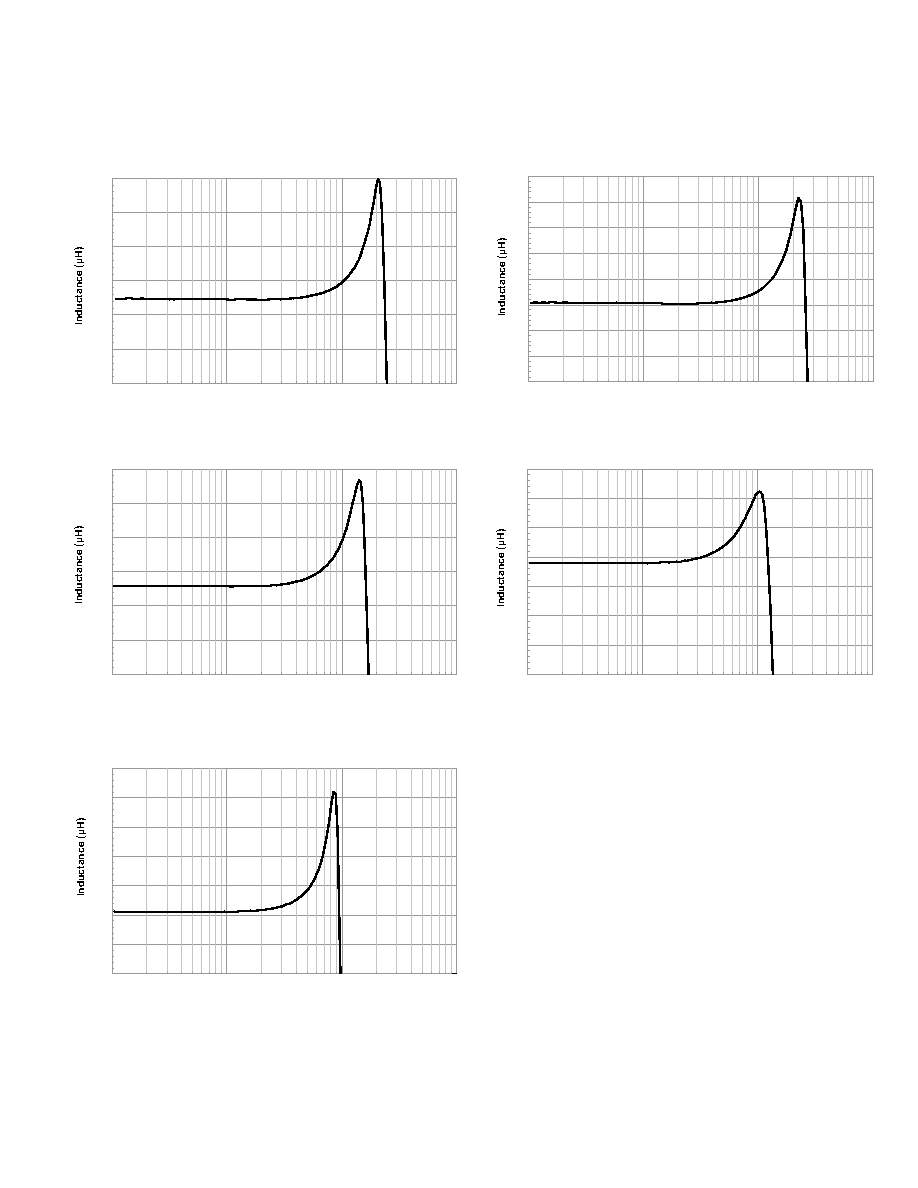

Inductance vs. Frequency
0
2
4
6
8
10
12
0.1
1
10
100
Frequency (MHz)
MPIA4020V2-4R7-R
0
2
4
6
8
10
12
14
16
0.1
1
10
100
Frequency (MHz)
MPIA4020V2-6R8-R
0
4
8
12
16
20
24
0.1
1
10
100
Frequency (MHz)
MPIA4020V2-100-R
0
4
8
12
16
20
24
28
0.1
1
10
100
Frequency (MHz)
MPIA4020V2-150-R
0
10
20
30
40
50
60
70
0.1
1
10
100
Frequency (MHz)
MPIA4020V2-220-R
