Technical Data
10248
Effective June 2016
HCMA0503
Automotive grade high current power inductors
www.eaton.com/elx

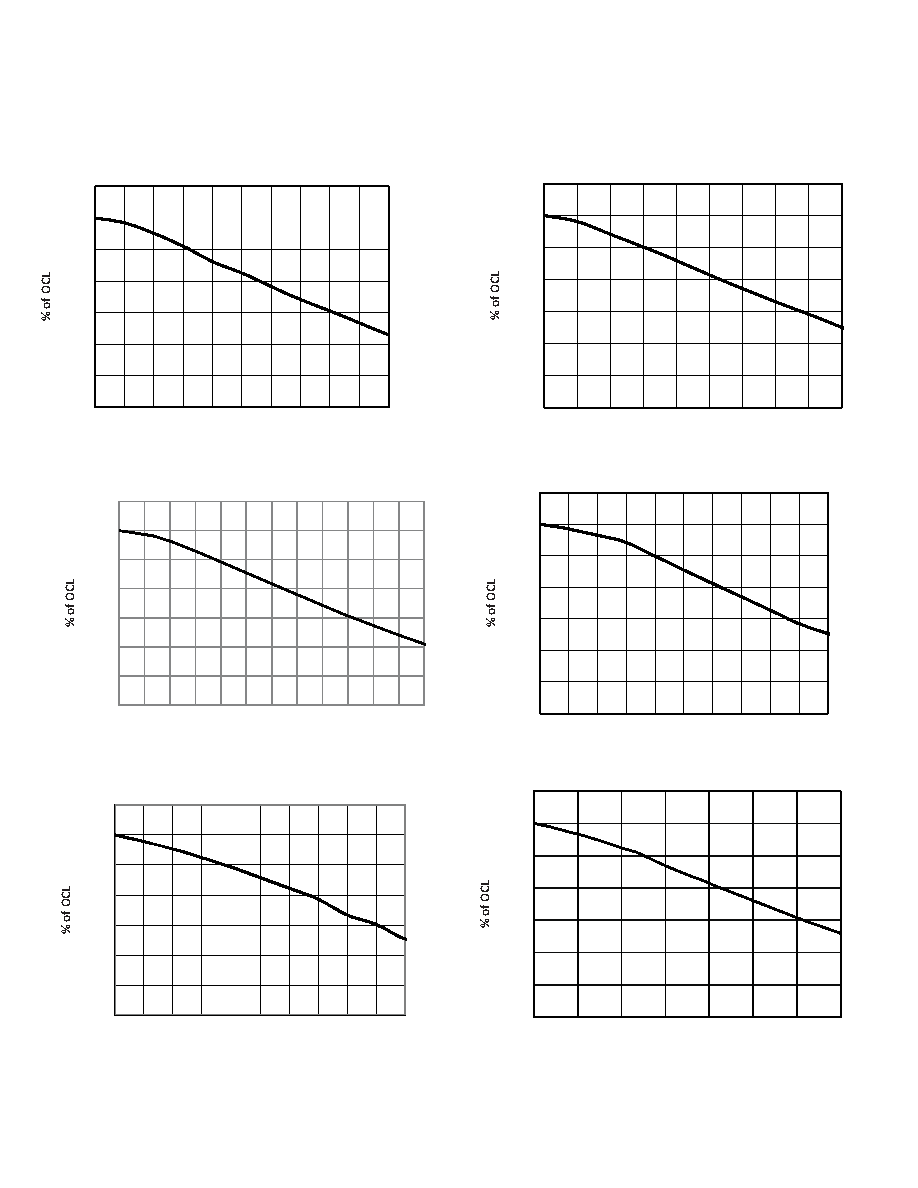

Inductance characteristics
40%
50%
60%
70%
80%
90%
100%
110%
0
123456789
10
IDC (A)
HCMA0503-4R7-R
40%
50%
60%
70%
80%
90%
100%
110%
012345678
9
IDC (A)
HCMA0503-5R6-R
40%
50%
60%
70%
80%
90%
100%
110%
0.00.5 1.01.5 2.02.5 3.03.5 4.04.5 5.0
IDC (A)
HCMA0503-100-R
40%
50%
60%
70%
80%
90%
100%
110%
0.00.5 1.01.5 2.02.5 3.03.5 4.04.5 5.0
IDC (A)
HCMA0503-150-R
40%
50%
60%
70%
80%
90%
100%
110%
0.00.5
1.01.5
2.02.5
3.03.5
IDC (A)
HCMA0503-220-R
40%
50%
60%
70%
80%
90%
100%
110%
00.5
11.5
22.5
33.5
44.5
55.5
6
IDC (A)
HCMA0503-6R8-R
