HCMA0503-R35-R Datasheet(PDF) 4 Page - Eaton All Rights Reserved. |
|
|
|||||||||||||||||||||||||||||
HCMA0503-R35-R Datasheet(HTML) 4 Page - Eaton All Rights Reserved. |
|
|

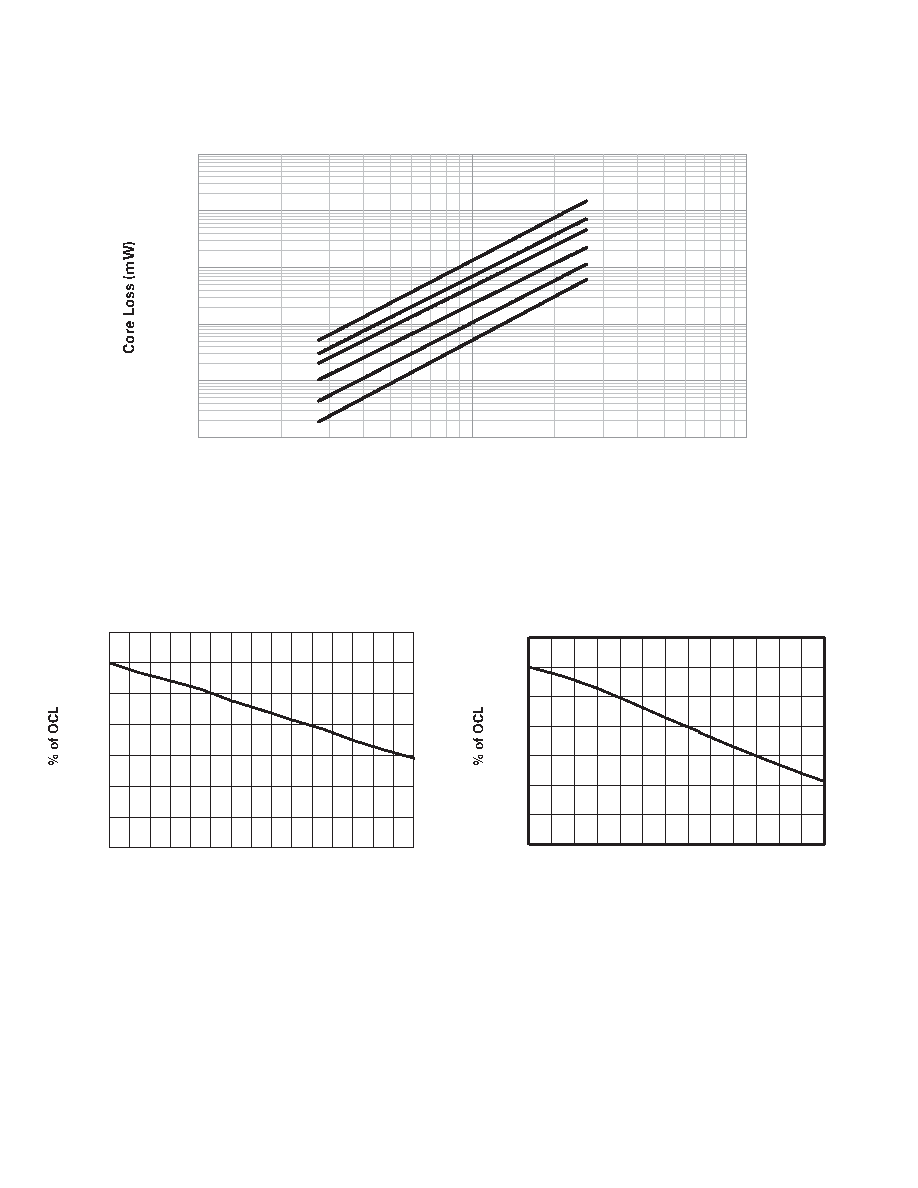

4 / 7 page  4 Technical Data 10248 Effective June 2016 HCMA0503 Automotive grade high current power inductors www.eaton.com/elx Core loss vs. Bp-p Inductance characteristics 25kHz 50kHz 100kHz 200kHz 300kHz 500kHz 0.1 1.0 10.0 100.0 1000.0 10000.0 100 1000 10000 Bp-p (Gauss) 40% 50% 60% 70% 80% 90% 100% 110% 0246 81012141618202224262830 IDC (A) HCMA0503-R20-R 40% 50% 60% 70% 80% 90% 100% 110% 02468 10 12 14 16 18 20 22 24 26 HCMA0503-R35-R IDC (A) |
|
|
