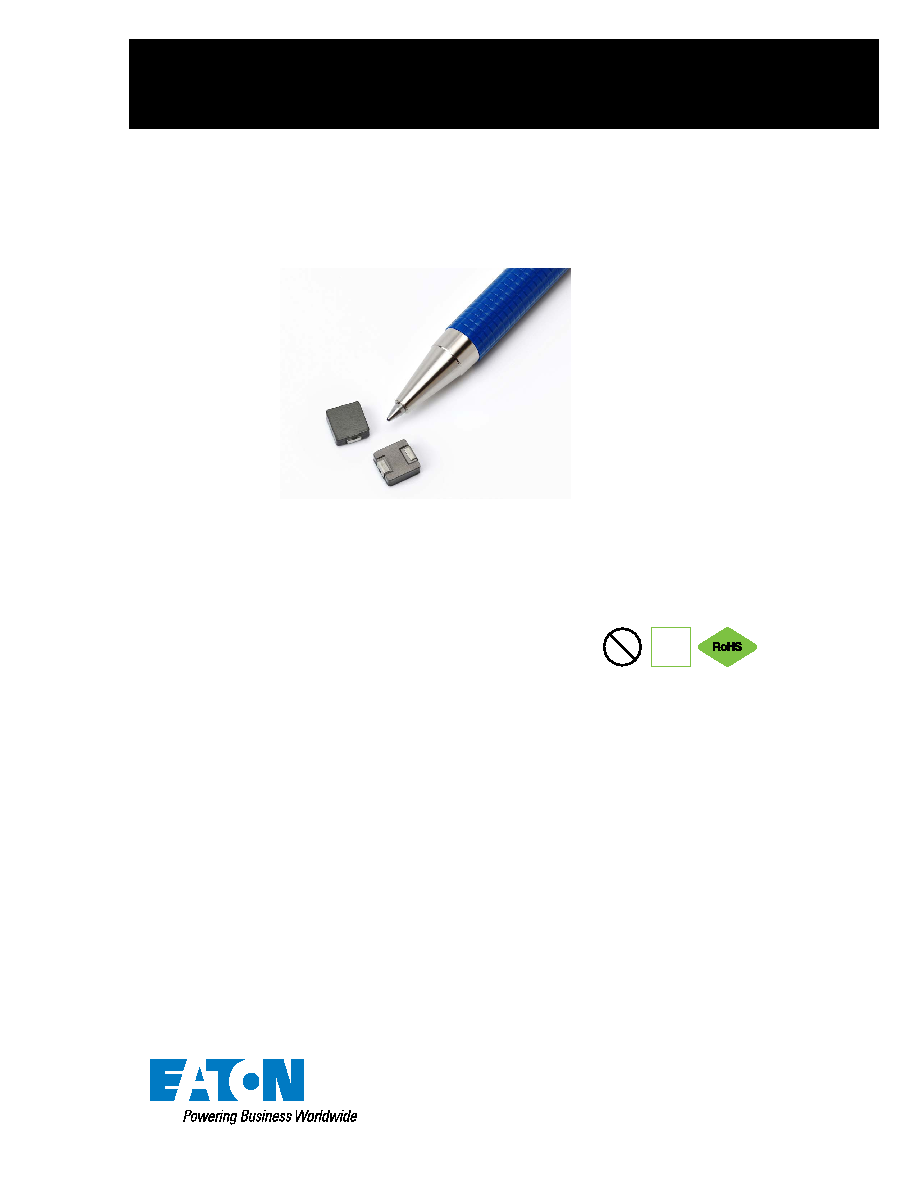

Technical Data 4085
Effective March 2016
Supersedes December 2014
HCM0703
High current power inductors
Product features
•
High current carrying capacity
•
Low core losses
•
Magnetically shielded, low EMI
•
Frequency range up to 5 MHz
•
Inductance range from 0.15 μH to 33 μH
•
Current range from 1.8 A to 52 A
•
7.4 mm x 6.8 mm footprint surface mount
package in a 3.0 mm height
•
Iron powder core material
Applications
•
Voltage Regulator Module (VRM)
•
Multi-phase regulators
•
Point-of-loadmodules
•
Desktop and server VRMs and EVRDs
•
Base station equipment
•
Laptop and notebook regulators
•
Battery power systems
•
Graphics cards
•
Data networking and storage systems
Environmental Data
•
Storage temperature range (Component):
-55 °C to +125 °C
•
Operating temperature range: -55 °C to +125 °C
(ambient plus self-temperature rise)
•
Solder reflow temperature:
J-STD-020 compliant (Latest revision)
Pb
HALOGEN
HF
FREE
