Technical Data
10551
Effective September 2016
HCM1A1305
Automotive grade high current power inductors
www.eaton.com/electronics

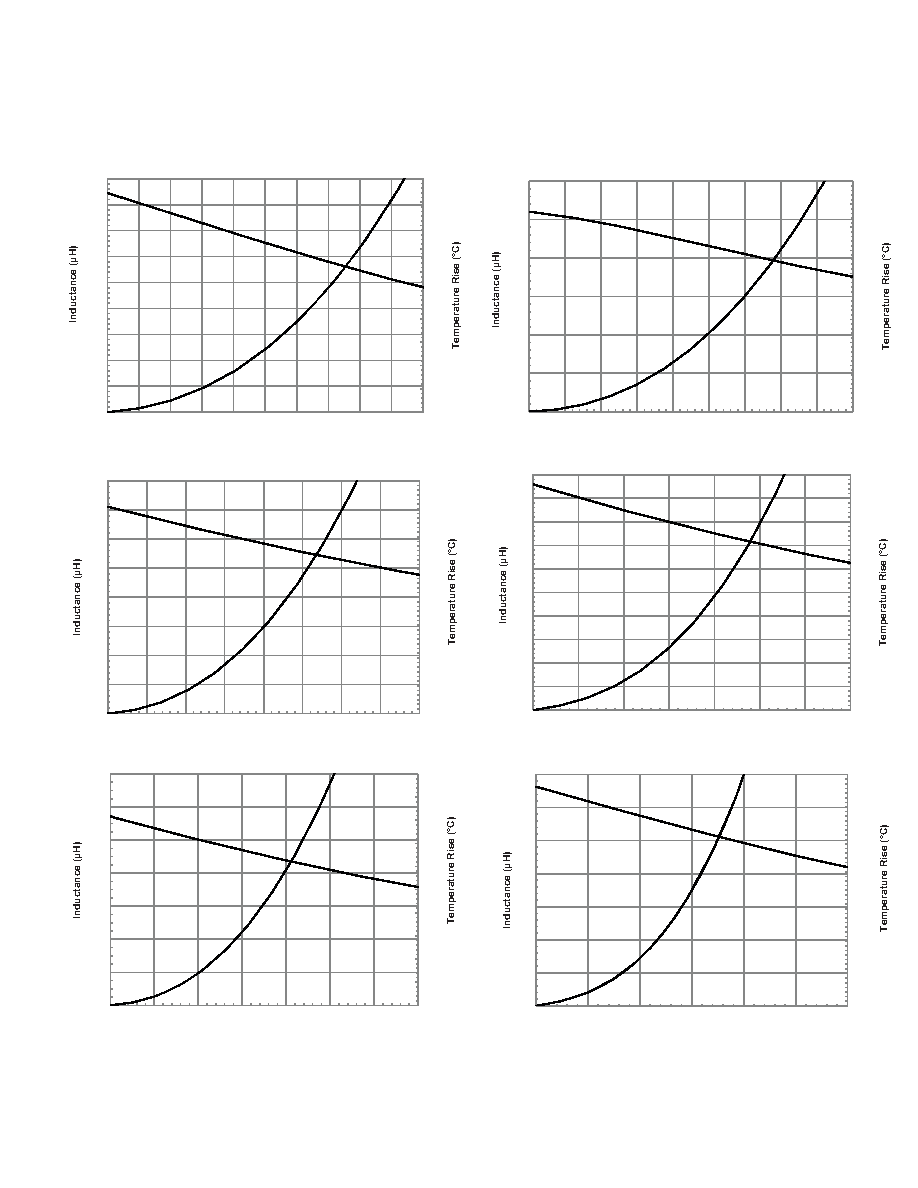

Inductance and temperature rise vs. current
0
10
20
30
40
50
60
70
80
90
100
0.00
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
05
10
15
20
25
30
35
40
45
50
Idc (A)
HCM1A1305-R82-R
0
10
20
30
40
50
60
70
80
90
100
0.0
0.2
0.4
0.6
0.8
1.0
1.2
05
10
15
20
25
30
35
40
45
Idc (A)
HCM1A1305-1R0-R
0
10
20
30
40
50
60
70
80
90
100
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
05
10
15
20
25
30
35
40
Idc (A)
HCM1A1305-1R5-R
0
10
20
30
40
50
60
70
80
90
100
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
05
10
15
20
25
30
35
Idc (A)
HCM1A1305-1R8-R
0
10
20
30
40
50
60
70
80
90
100
0.0
0.4
0.8
1.2
1.6
2.0
2.4
2.8
05
10
15
20
25
30
35
Idc (A)
HCM1A1305-2R2-R
0
10
20
30
40
50
60
70
80
90
100
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
05
10
15
20
25
30
Idc (A)
HCM1A1305-3R3-R
