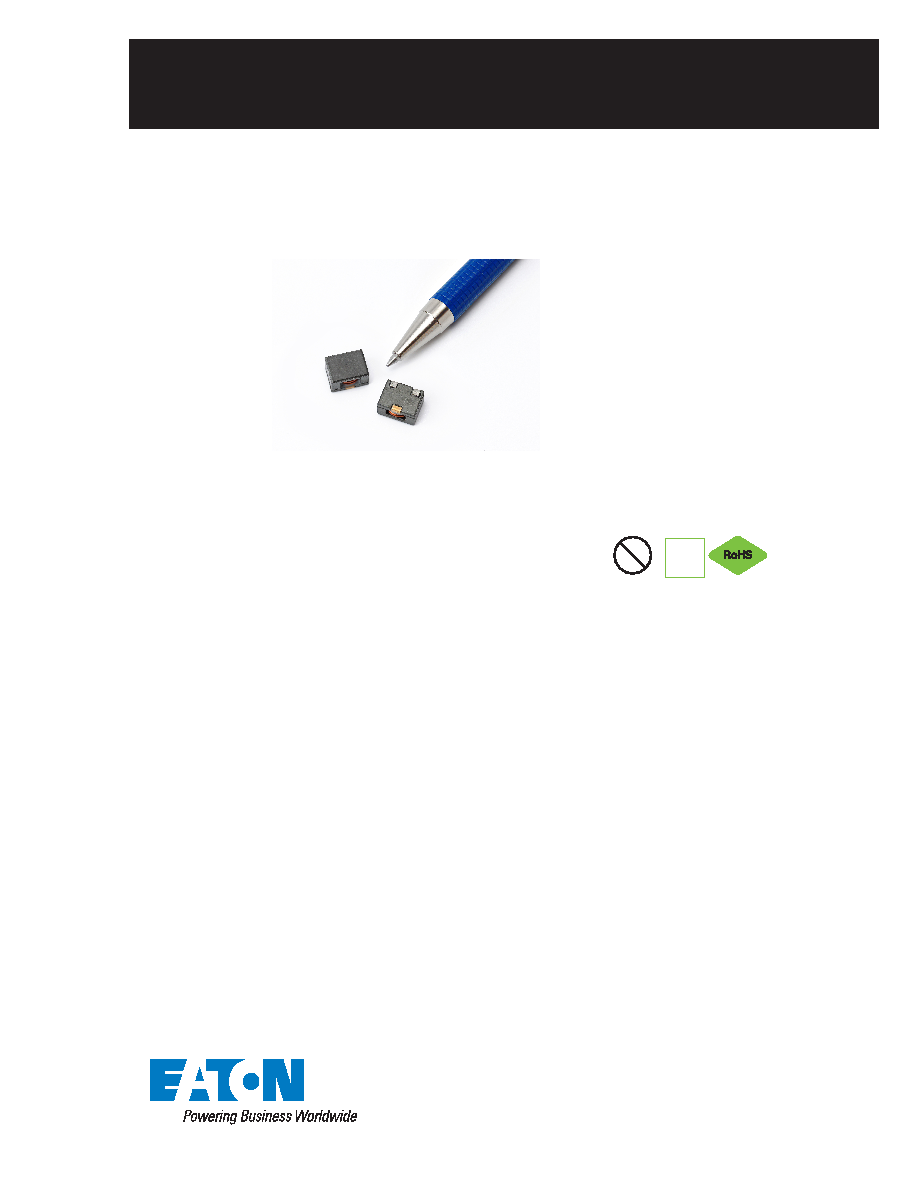

Technical Data 4361
Effective July 2017
Supersedes September 2010
Product features
•
10.3 x 8.1 x 6.65 mm surface mount package
•
Ferrite core material
•
Secure 3 terminal mounting
•
High current carrying capacity, low core losses
•
Tight DCR tolerance for sensing circuits
•
Inductance range from 0.3 µH to 10.0 µH
•
Current range from 5.3 A to 48 A
•
Frequency range up to 1 MHz
Applications
•
Storage temperature range (component):
-40 °C to +125 °C
•
Operating temperature range: -40 °C to +125 °C
(ambient plus self-temperature rise)
•
Solder reflow temperature:
J-STD-020 (latest revision) compliant
HCF1007
High frequency, high current power inductors
Pb HALOGEN
HF
FREE
•
Point-of-load modules
•
Multi-phase regulators
•
Voltage Regulator Module (VRM)
•
Desktop and server VRMs and EVRDs
•
Data networking and storage systems
•
Graphics cards and battery power systems
•
DCR current sensing
Environmental data
