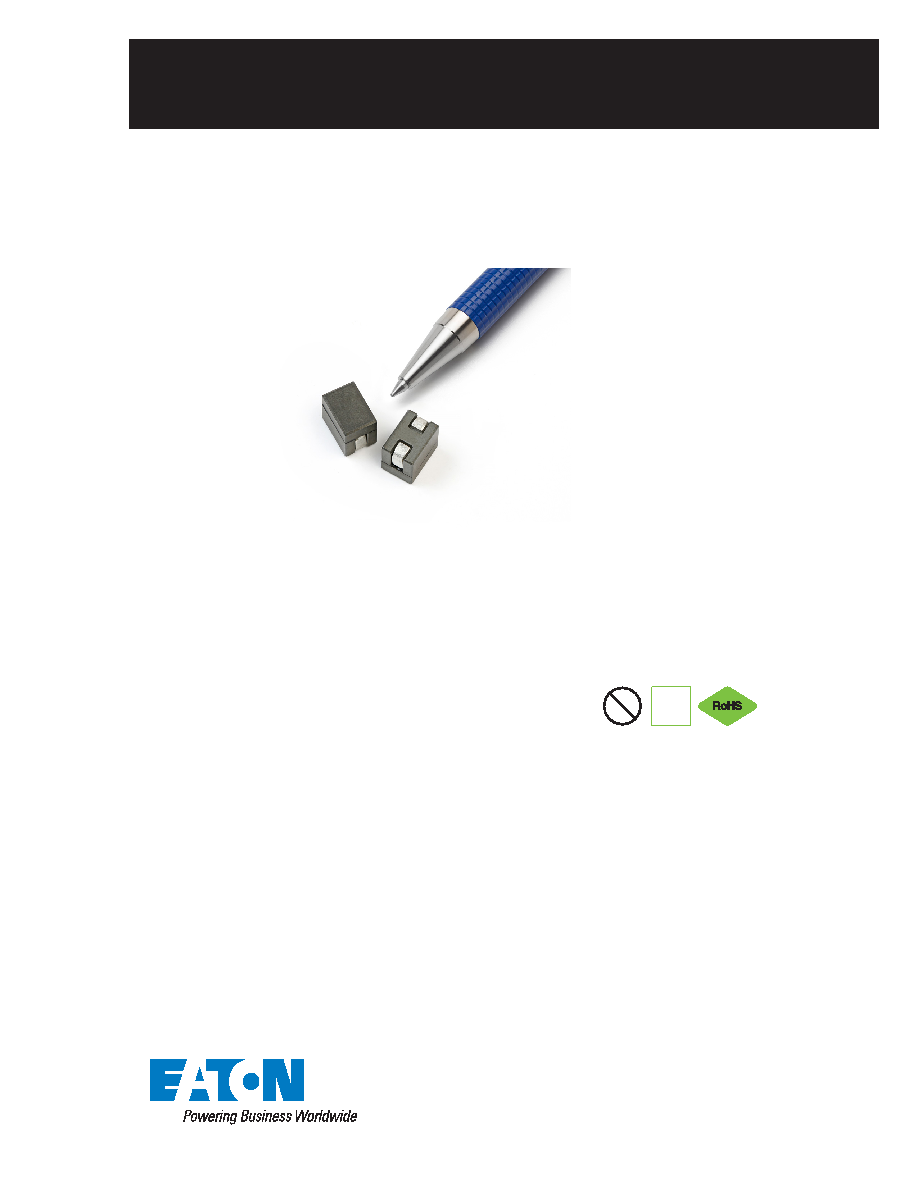

Technical Data 10531
Effective April 2016
FP1010R
High frequency, high current power inductors
Description
•
High current carrying capacity
•
Low core loss
•
Magnetically shielded
•
Tight tolerance DCR for sensing circuits
•
10 mm x 7.0 mm footprint surface mount
package in a 10 mm height
•
Ferrite core material
•
Halogen free, lead free, RoHS compliant
Applications
•
Multi-phase and Vcore regulators
•
Voltage Regulator Modules (VRMs)
•
Server and desktop
•
Central processing unit (CPU)
•
Graphics processing unit (GPU)
•
Application specific integrated circuit (ASIC)
•
High power density
•
Data networking and storage systems
•
Graphics cards and battery power systems
•
Portable electronics
•
Point-of-Load modules
•
DCR Sensing circuits
Environmental Data
•
Storage temperature range (Component):
-40 °C to +125 °C
•
Operating temperature range: -40 °C to +125 °C
(ambient plus self-temperature rise)
•
Solder reflow temperature: J-STD-020D
compliant
Pb
HALOGEN
HF
FREE
