B37
7±0.05
1.6
4-Ø1±0.1
1.1
2
3.5
+0.1
0
4.6±0.1
2.54±0.05
5- Ø0.9
+0.1
0

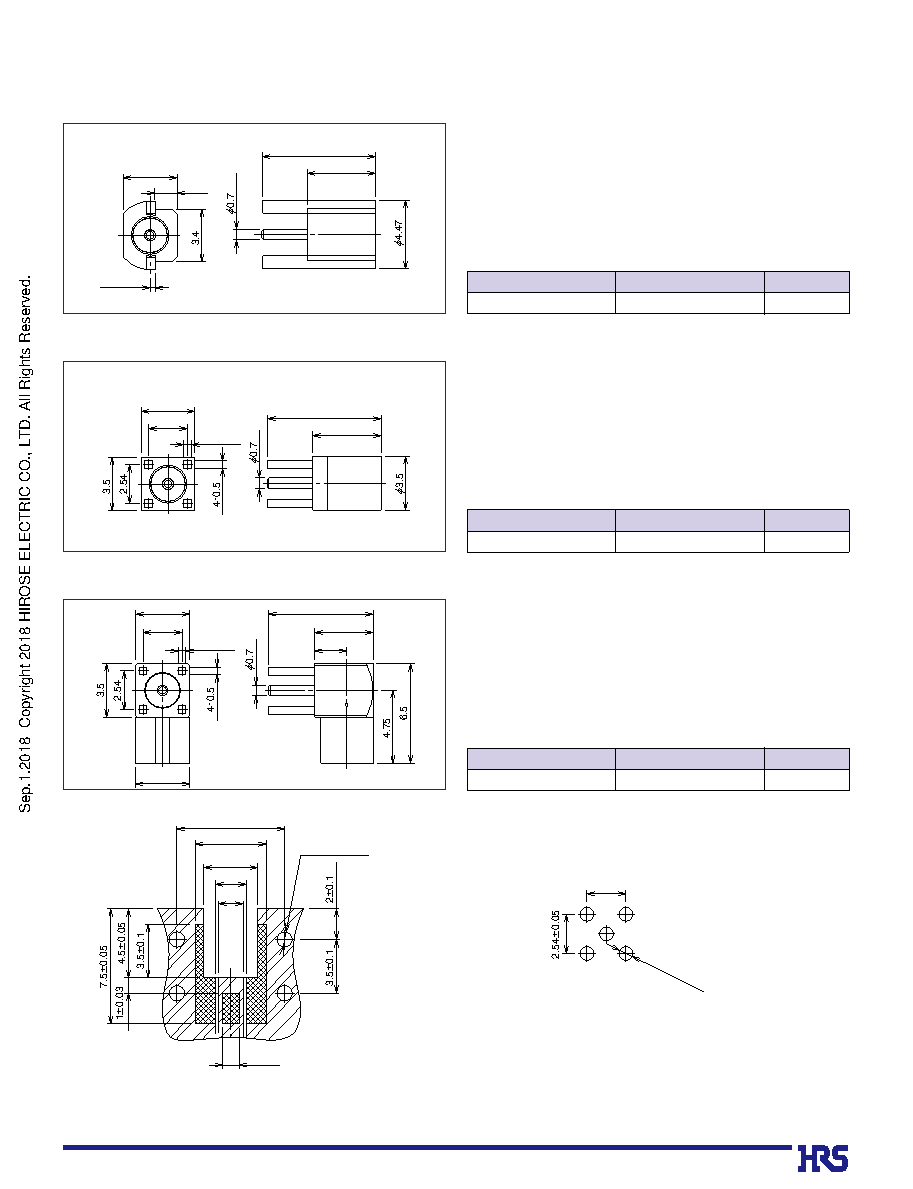

PCB mounting pattern (MMCX-LR-SMT)
(Reference) Glass epoxy FR-4 t=0.8 (
■=4.6)
PCB mounting pattern (MMCX-R-PC)
(MMCX-LR-PC-1)
■Receptacle
●Right Angle, PCB Surface Mount
3.51
0.36
1.4
7.37
4.45
CL No.
Packaging
50 pcs PER case
Part Number
339-0003-2
MMCX-LR-SMT
●Vertical, PCB Through Hole
2.54
4-0.5
3.5
4.45
7.37
●Right Angle, PCB Through Hole
4-0.5
2.54
3.5
2.1
3.8
Ø3.5
6.8
CL No.
Packaging
50 pcs PER case
Part Number
339-0005-8
MMCX-R-PC
CL No.
Packaging
50 pcs PER case
Part Number
339-0013-6
MMCX-LR-PC-1
