Appendix Standard Serial I/O Mode (Flash Memory Version)
Mitsubishi microcomputers
M16C / 62A Group
SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
1-237

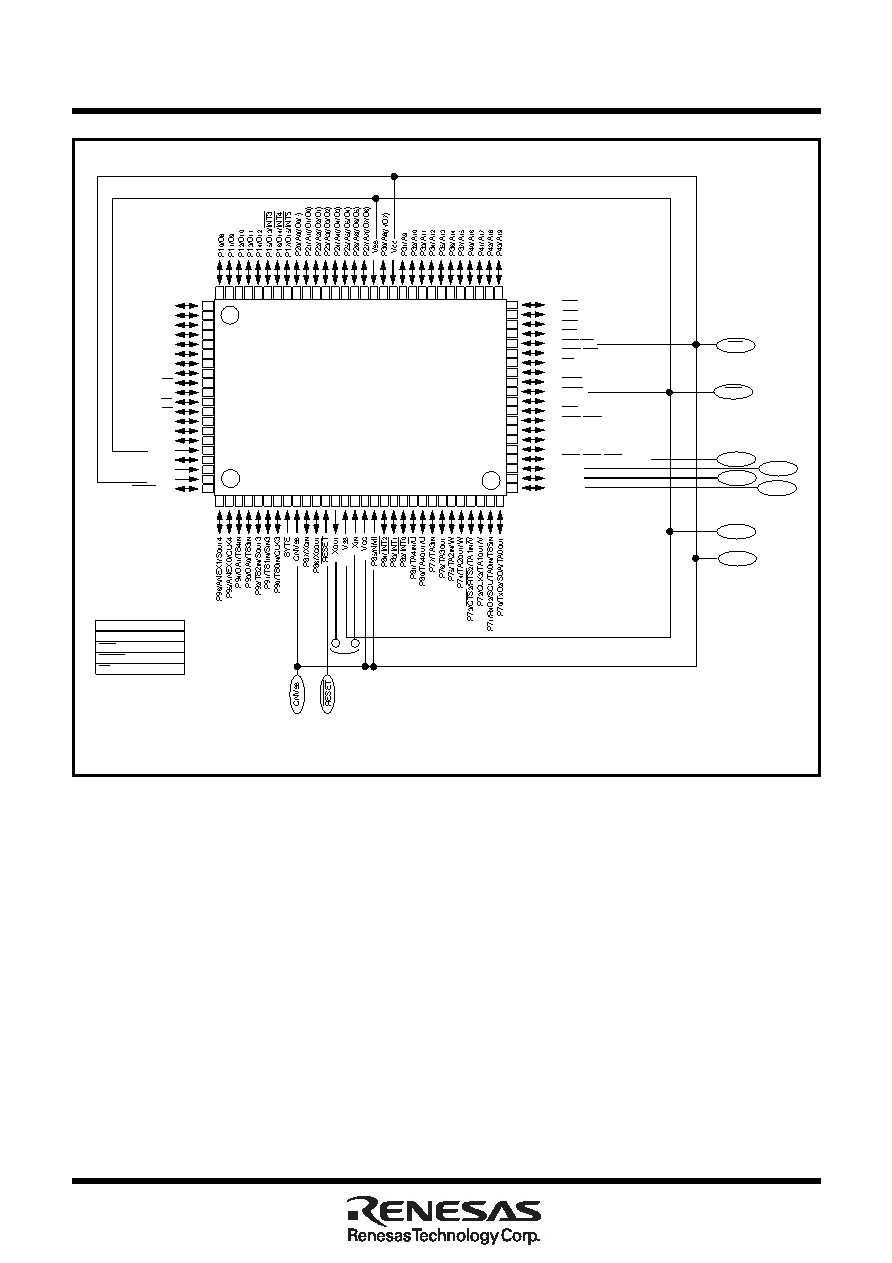

Figure 1.29.1. Pin connections for serial I/O mode (1)
1
2 3
4 5
6
7
8 9 10 1112 13 14 151617181920 21 22 232425 26 27 282930
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
P00/D0
P01/D1
P02/D2
P03/D3
P04/D4
P05/D5
P06/D6
P07/D7
VREF
AVSS
P56/ALE
P55/HOLD
P54/HLDA
P53/BCLK
P52/RD
P57/RDY/CLKOUT
P45/CS1
P46/CS2
P47/CS3
AVcc
P63/TXD0
P65/CLK1
P66/RxD1
P67/TXD1
P61/CLK0
P62/RxD0
P100/AN0
P101/AN1
P102/AN2
P103/AN3
P104/AN4/KI0
P105/AN5/KI1
P106/AN6/KI2
P107/AN7/KI3
P97/ADTRG/SIN4
P60/CTS0/RTS0
P64/CTS1/RTS1/CTS0/CLKS1
P44/CS0
P50/WRL/WR
P51/WRH/BHE
Vcc
Vss
RxD
TxD
SCLK
CE
EPM
BUSY
Connect
oscillator
circuit.
CNVss
Vcc
EPM
Vss
RESET
Vss to Vcc
CE
Vcc
Signal
Value
Mode setup method
Package: 100P6S-A
M16C/62A Group
(Flash memory version)
